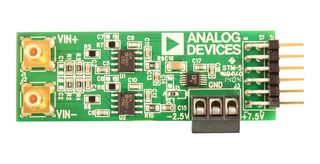

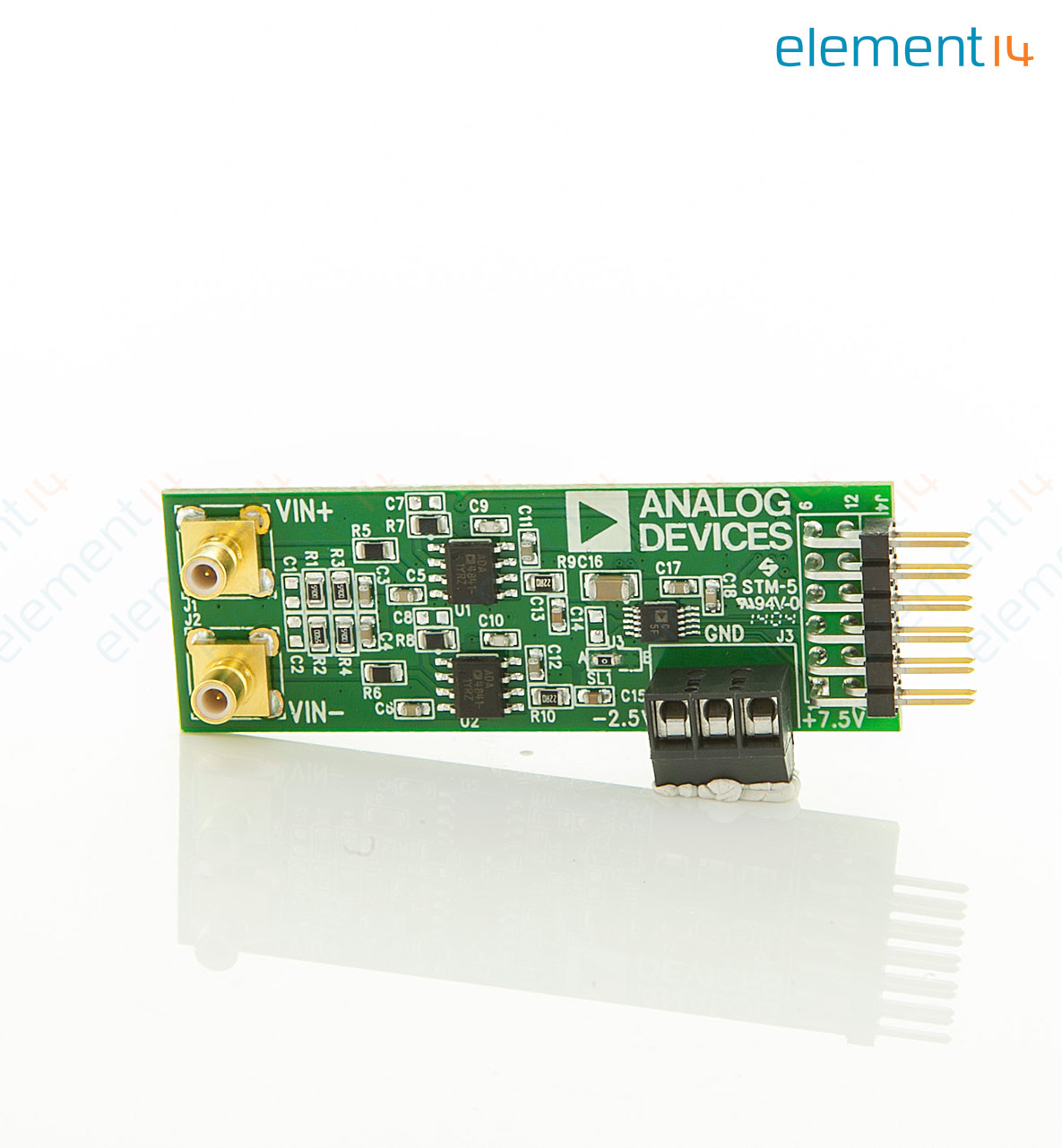

EVAL-AD7982-PMDZ
PMOD Board, AD7982, Analogue to Digital Converter, 18 Bit, 1 MSPS
- Manufacturer:
- ANALOG DEVICES ANALOG DEVICES
- Manufacturer Part No:
- EVAL-AD7982-PMDZ
- Order Code:
- 4023159
- Technical Datasheet:
- EVAL-AD7982-PMDZ Datasheet
Product Overview
EVAL-AD7982-PMDZ is an 18bit, 1000KSPS PulSAR® ADC PMOD evaluation board. The PMOD-compatible evaluation/prototyping board is a small form factor, low-cost analogue to digital conversion option. When prototyping, this board is used in conjunction with your favourite MCU or FPGA development board which has the SPI PMOD peripheral connector. This board can also be operated as an evaluation board using the System Demonstration Platform (EVAL-SDP-CB1Z) and an adaptor board (SDP-PMD-IB1Z). When operated with the System Demonstration Platform, a LabView software GUI is provided enabling the user to perform analysis of the ADC's performance.
- 18bit analogue to digital converters
- Unipolar, differential input
- Standard SPI PMOD header/pin out
- Connectable to 3rd Party FPGA and MCU Platforms
Product Information
Want to see similar products? Simply select your required attributes below and hit the button ×
- :
- Analog Devices
- :
- AD7982
- :
- 18bit
- :
- 1MSPS
- :
- Data Converter
- :
- ADC
- :
- PMOD Board AD7982
- :
- -
Technical Documents (4)
6 total stock globally Need more?
×
You can reserve stock now just order your desired quantity and checkout as normal. The quantity that cant be dispatched now will be placed on back order and sent as soon as we get a delivery from our supplier. You only get charged when the products are dispatched to you.
1 more will be available on 21/08/23
Extra stock is available upon order to the Supplier Lead Time which is approximately 18/09/23
6 UK stock available for 5-8 business days delivery
Due to market conditions delivery times are for general guidance only and may be subject to change at short notice
$60.04
(
$69.05
Inc. GST)
Pricing is unavailable. Please contact customer services.
- Price for:
- Each
Multiple: 1 Minimum: 1
- 1+
| Quantity | Price (Incl GST) | Your Price |
|---|---|---|
| 1+ | $60.04 ($69.05) | ( ) |
