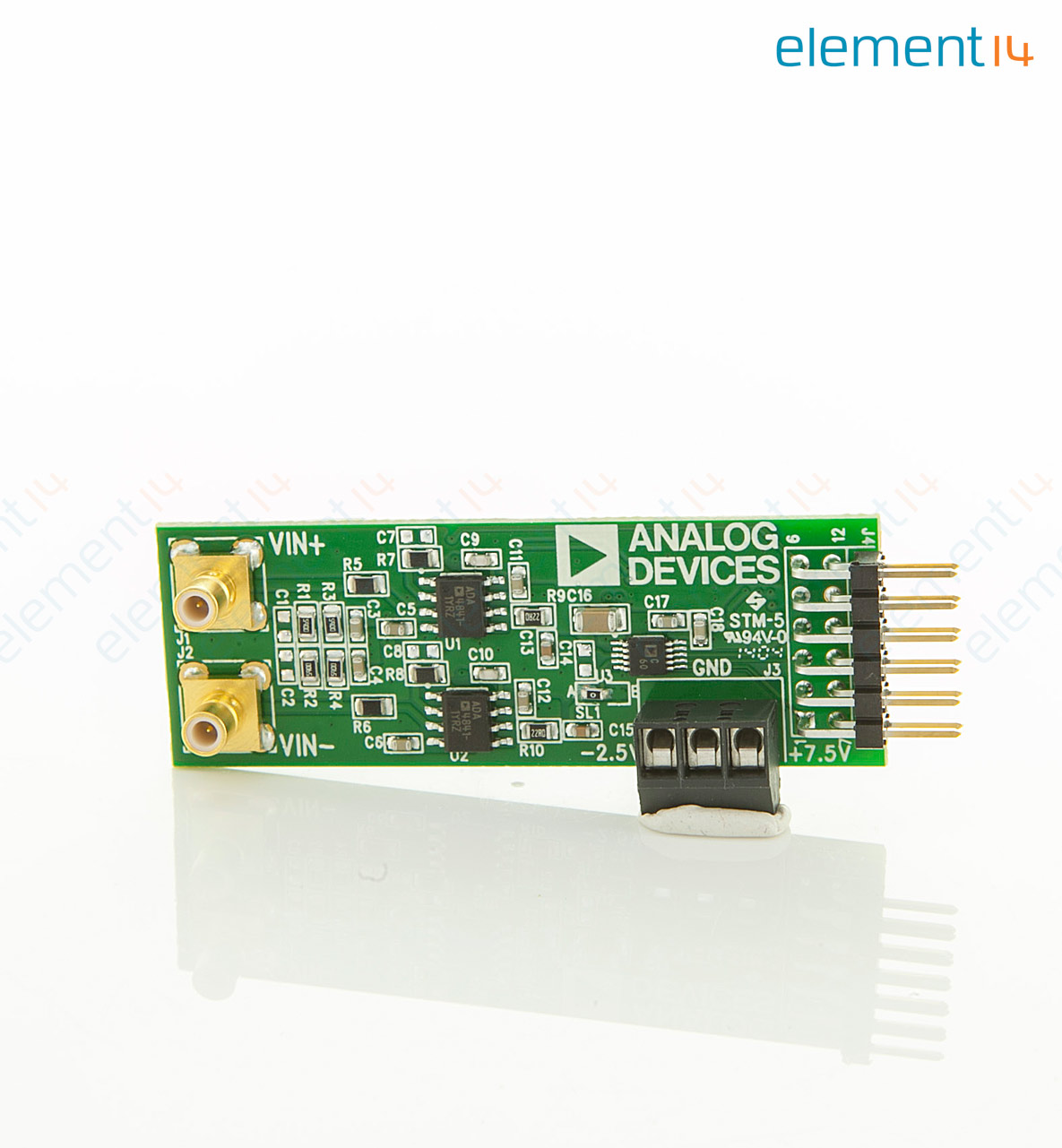

PMOD Board, AD7984, Analogue to Digital Converter, 18 Bit, 1.33 MSPS


Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
Order Code:
Technical Datasheet:
EVAL-AD7984-PMDZ   Datasheet
See all Technical Docs

Product Overview

EVAL-AD7984-PMDZ is an 18bit, 1333KSPS PulSAR® ADC PMOD evaluation board. The PMOD-compatible evaluation/prototyping board is a small form factor, low-cost analogue to digital conversion option. When prototyping, this board is used in conjunction with your favourite MCU or FPGA development board which has the SPI PMOD peripheral connector. This board can also be operated as an evaluation board using the System Demonstration Platform (EVAL-SDP-CB1Z) and an adaptor board (SDP-PMD-IB1Z). When operated with the System Demonstration Platform, a LabView software GUI is provided enabling the user to perform analysis of the ADC's performance.
  • 18bit analogue to digital converters
  • Unipolar, differential input
  • Standard SPI PMOD header/pin out
  • Connectable to 3rd Party FPGA and MCU Platforms

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×

Analog Devices




Data Converter


PMOD Board AD7984


Find similar products Choose and modify the attributes above to find similar products.

Technical Documents (4)

10 total stock globally Need more?

10 UK stock available for 5-8 business days delivery

Due to market conditions delivery times are for general guidance only and may be subject to change at short notice

$60.69 ( $69.79  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Multiple: 1 Minimum: 1
  • 1+
Quantity Price (Incl GST) Your Price
1+ $60.69 ($69.79)
