EVAL-ADAQ4003FMCZ

EVAL-ADAQ4003FMCZ is an evaluation board for the ADAQ4000 series µModule data acquisition solution. The ADAQ4003 µModule combine multiple common signal processing and conditioning blocks into a single device that includes a low noise, fully differential analogue to-digital converter (ADC) driver, a stable reference buffer, a high resolution, 18bit, 2 MSPS successive approximation register (SAR) ADC and the critical passive components necessary for optimum performance.

• Fully featured Pmod evaluation board with a Pmod to FMC interposer board
• Versatile analogue signal conditioning circuitry
• On-board reference and ADC drivers
• PC software for control and data analysis of time and frequency domain
• System demonstration platform compatible (EVAL-SDP-CH1Z)

Contents

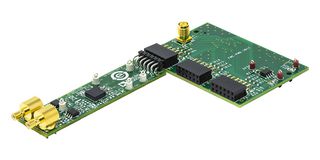

EVAL-ADAQ4003PMDZ Pmod evaluation board, EVAL-PMD-IB1Z Pmod to FMC interposer board.

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
