EVAL-ADAU1966AZ

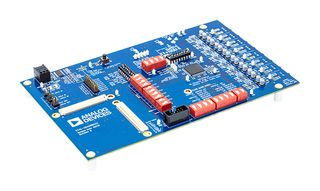

EVAL-ADAU1966AZ is an evaluation board that allows the user to evaluate the ADAU1966A, 16-channel high performance, low power multibit Sigma-Delta DAC. The evaluation board will supply bit clock, LR clock and host clock and will except either 6 or 8 dual channel I2S data streams or multiple TDM (Time Division Multiplexed) data streams. The board has an S/PDIF receiver with RCA and optical connectors, as well as a discrete serial audio interface. Analog outputs are accessible via 8 stereo TRS Mini jacks. The ADAU1966A can be controlled through either an I2C or SPI interface. A small external interface board EVAL-ADUSB2EBZ, also called USBi, connects to a PC USB port and provides either I2C or SPI access to the evaluation board through a ribbon cable. A graphical user interface (GUI) program, the Automated Register Window Builder, is provided for easy programming of the chip in a Microsoft® Windows® PC environment.

• Demonstrate performance testing of most ADAU1966A features, including high-performance DAC operation

Contents

ADAU1966A evaluation board, USBi control interface board, USB cable, 12V desktop supply.
