EVAL-ADGM1004SDZ
Evaluation Board, ADGM1004, 13GHz, SP4T, MEMS Switch with Integrated Drive
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADGM1004SDZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4566661 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $540.080 ($621.092) |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | EVAL-ADGM1004SDZCopy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 4566661 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | ADGM1004 |
| Kit Application Type | Switch |
| Application Sub Type | MEMS Switch |
| Kit Contents | Evaluation Board ADGM1004 |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

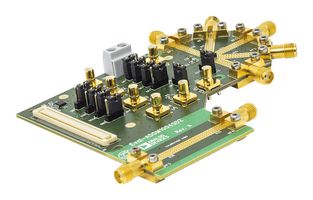

EVAL-ADGM1004SDZ evaluation board evaluates the ADGM1004 wideband, single-pole, four-throw (SP4T), microelectromechanical systems (MEMS) switch, and a control chip copackaged in a compact, 24-lead, 5mm × 4mm × 1.45mm, lead frame chip scale package (LFCSP). The SP4T switch uses Analog Devices, Inc., MEMS switch technology, which provides optimum bandwidth performance, power handling capability, and linearity for radio frequency applications. The control chip generates the high voltage signals necessary for the MEMS switch and allows the user to control operation through a flexible, complementary metal oxide semiconductor (CMOS), low voltage transistor to transistor logic (LVTTL) compliant, parallel interface, as well as through a serial peripheral interface (SPI). It is possible to daisy-chain multiple ADGM1004 devices together, which enables the configuration of multiple devices with a minimal amount of digital lines.
- Single supply voltage of 3.3V
- Wide frequency range
- SMA connectors for RF signals
- SMB connectors for switch control signals
- On-board calibration transmission line for analyser calibration
