EVAL-ADMV4630Z

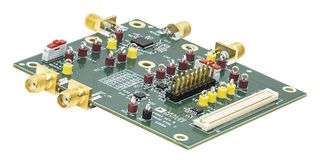

Evaluation Board, ADMV4630BCPZN, 14GHz to 14.5GHz, Ku-Band Upconverter
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2,235.880 ($2,571.262) |
Product Information
Product Overview
EVAL-ADMV4630Z is an evaluation board that incorporates the ADMV4630, low dropout (LDO) regulators, and the EVAL-SDP-CS1Z (SDP-S) controller board to allow simplified, efficient evaluation of the ADMV4630. The SDP-S controller board allows the configuration of the ADMV4630 register map through the Analysis, Control, Evaluation (ACE) software. The LDO regulators allow the EVAL-ADMV4630Z to be powered by a 5V single supply. The ADMV4630 is a Ku-band upconverter optimized for various satellite communication (SATCOM) user terminals operating in the 14.0GHz to 14.5GHz frequency range. The ADMV4630 upconverter comes in a compact, thermally enhanced, 6 mm × 6 mm, 40-lead frame chip scale package (LFCSP). The ADMV4630 operates over the -40°C to +85°C case temperature range.
- Fully featured evaluation board for the ADMV4630
- On-board SDP-S connector for SPI control
- Simplified power-up with on-board LDO regulators
- ACE software interface for SPI control
Contents
EVAL-ADMV4630Z evaluation board, Mini USB to USB cable, SDP-S controller board.
