MAX33012ESHLD#/MAXESSENTIAL01+

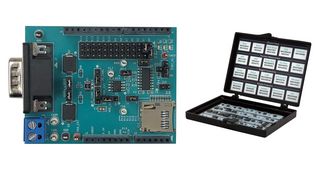

MAX33012ESHLD#/MAXESSENTIAL01+ is a bundle of MAX33012E shield and MAXESSENTIAL01+ essential analogue toolkit contains a unique collection of Maxim's high-performance, analogue building block products. The MAX33012E Shield is a fully assembled and tested PCB that demonstrates functionality of the MAX33012E, a high ±65V fault protection, ±25V common mode input range, ±25kV ESD HBM CAN transceiver. The shield features a digital isolator, which is used as level translator between CAN transceiver and controller interface. In MAXESSENTIAL01, this curated group of parts represent a selection of Maxim’s vast product lines, specific to 20 product categories, from key performance areas including power efficiency, precise measurement, reliable connectivity, and robust protection. The ICs in toolkit offer breadth of each product category: low power, low noise, multi-channel, high resolution, high accuracy, and high speed. All these features empower your designs and bring value to your systems.

• Easy evaluation of the MAX33012E
• Mbed/Arduino shield can also be used as a standalone evaluation board
• I/O interface compatibility from 1.71V to 5.5V
• Proven PCB layout
• Fully assembled and tested
• MAXESSENTIAL01+: small, 6.4cm x 8.9cm x 1.3cm package
• Products are guarded from ESD using a gel and ESD-protected box
• Accelerate your design with quick access
