MAX35104EVKIT#

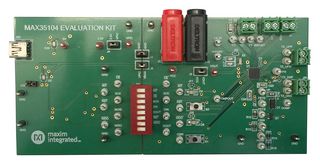

The MAX35104EVKIT# is an evaluation Kit for the MAX35104. It provides the hardware and graphical user interface (GUI) software necessary to evaluate the MAX35104 time-to-digital converter designed for ultrasonic heat, water and gas meters. The EV kit includes a MAX35104ETL+ installed as well as the required USB-to-SPI interface needed to communicate with the IC. The USB-to-SPI master section of the EV kit along with the EV kit software provides a quick method to exercise the device's functionality. The EV kit can be powered by the USB to simplify an evaluation setup but also comes equipped with banana jacks that enable an external supply such as a battery to power the system. It is used in medical ventilators and ultrasonic gas meters.

• Easy Evaluation of the MAX35104
• Two piezoelectric transducer connections and two RTD connections provided
• EV Kit hardware optionally USB powered (USB cable included)
• USB HID interface
• Windows XP and Windows 7-compatible software
• Proven PCB layout
• Fully assembled and tested

Applications

Medical
