| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX5719EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2627163 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $519.050 ($596.9075) |
Product Information
| Manufacturer | ANALOG DEVICES |
|---|---|
| Manufacturer Part No | MAX5719EVKIT#Copy |
| Manufacturer Standard Lead Time | 12 weeks |
| Order Code | 2627163 |
| Technical Datasheet | |
| Silicon Manufacturer | Analog Devices |
| Silicon Core Number | MAX5719 |
| Kit Application Type | Data Converter |
| Application Sub Type | DAC |
| Kit Contents | Eval Board MAX5719, Micro-USB Cable |
| Product Range | - |
| SVHC | No SVHC (04-Feb-2026) |
Product Overview

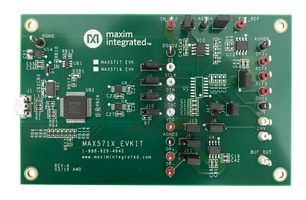

The MAX5719EVKIT# is an evaluation kit for MAX5719GSD+ 20bit digital to analogue converter (DAC). The MAX5719 is a voltage output unipolar digital to analogue converter (DACs) with integrated feedback resistors that allow bipolar operation when used with an external operational amplifier. This DAC provides low glitch energy, low noise, tight bipolar resistor matching and high accuracy. The EV kit includes an onboard master IC for all SPI and I/O communication.
- Onboard SPI controller
- Onboard output buffer (MAX9632)
- Onboard 4.096V reference voltage (MAX6126)
- Windows XP, Windows 7/8/8.1/10 compatible software
- Fully assembled and tested
Applications
Signal Processing
Contents
MAX5719 evaluation board, Micro USB cable, Graphical user interface (GUI).
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Technical Specifications
| Silicon Manufacturer | Analog Devices |
|---|---|
| Kit Application Type | Data Converter |
| Kit Contents | Eval Board MAX5719, Micro-USB Cable |
| SVHC | No SVHC (04-Feb-2026) |
| Silicon Core Number | MAX5719 |
|---|---|
| Application Sub Type | DAC |
| Product Range | - |
Technical Docs (2)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Philippines Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84733020 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (04-Feb-2026) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .25 |
