MAX889RESA+T
DC/DC Charge Pump Voltage Converter, Adjustable, -5.5 to -2.5V / 0.2A out, NSOIC-8

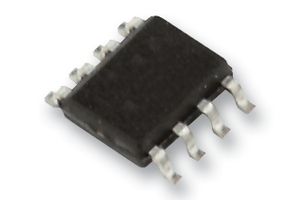

Image is for illustrative purposes only. Please refer to product description.
1,055 total stock globally
Need more?
1055 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $10.880 ($12.512) |
| 10+ | $8.350 ($9.6025) |
| 25+ | $7.730 ($8.8895) |
| 100+ | $6.790 ($7.8085) |
| 250+ | $6.270 ($7.2105) |
| 500+ | $6.070 ($6.9805) |
| 1000+ | $6.000 ($6.900) |
Price for:Each (Supplied on Cut Tape)
Minimum: 1
Multiple: 1
$10.88 ($12.51 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerANALOG DEVICES
Manufacturer Part NoMAX889RESA+T
Order Code3926381
Technical Datasheet
IC Case / PackageNSOIC
No. of Pins8Pins
Output Current Max200mA
Fixed Output Voltage Nom-
Adjustable Output Voltage Min-5.5V
Adjustable Output Voltage Max-2.5V
Input Voltage Min2.7V
Input Voltage Max5.5V
TopologyInverting
IC MountingSurface Mount
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
MSLMSL 1 - Unlimited
SVHCNo SVHC (21-Jan-2025)
Product Overview
MAX889RESA+T is a high-frequency, regulated, 200mA, inverting charge pump. The higher switching frequency device allows the use of smaller capacitors for space-limited applications. It also features a 0.1µA logic-controlled shutdown mode. Typical applications are TFT panels, hard disk drives, camcorders, digital cameras, measurement instruments, battery-powered applications.
- 200mA output current
- 8-pin SO package
- Small capacitors (1µF)
- 2.7V to +5.5V input voltage range
- Adjustable regulated negative output (-2.5V to -VIN)
- Low 0.05ohm output resistance (in regulation)
- Soft-start and foldback current limited
- Short-circuit and thermal shutdown protected
- 0.5MHz switching frequency
- Temperature range from -40°C to +85°C
