AC3559
Keypad, 1 x 4, Matrix, Polymer, 100 mA, 30 V
Image is for illustrative purposes only. Please refer to product description.
73 total stock globally
150 more incoming. You can reserve stock now
73 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $67.630 ($77.7745) |
| 5+ | $67.490 ($77.6135) |
| 10+ | $67.360 ($77.464) |
| 20+ | $67.230 ($77.3145) |
| 50+ | $67.080 ($77.142) |
Price for:Each
Minimum: 1
Multiple: 1
$67.63 ($77.77 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Overview

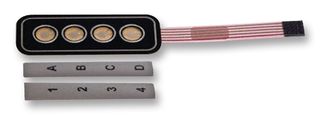

The AC3559 is a 1x4 Standard Keypad with insert pocket. The 2-inserts with black graphics on a silver background.
- 100MΩ Insulation resistance
- 10pF Typical capacitance
- -30 to 55°C Operating temperature range
Applications
Industrial, Maintenance & Repair
Technical Specifications
Product Range
-
Keypad Output
Matrix
Contact Current Max
100mA
No. of Keys
4
Panel Cutout Height
95mm
Keypad Array
1 x 4
Housing Material
Polymer
Contact Voltage DC Nom
30V
Panel Cutout Width
38mm
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:84716060
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.01
