ABX00022

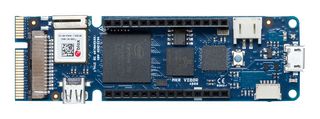

Development Board, Arduino MKR VIDOR 4000 Shield, Configurable Controller Board

ABX00022 - Development Board, Arduino MKR VIDOR 4000 Shield, Configurable Controller Board
ABX00022 - Development Board, Arduino MKR VIDOR 4000 Shield, Configurable Controller Board
ABX00022 - Development Board, Arduino MKR VIDOR 4000 Shield, Configurable Controller Board

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
ARDUINO ARDUINO
Manufacturer Part No:
ABX00022
Order Code:
2917571
Product Range
Arduino MKR
Also Known As:
GTIN UPC EAN: 7630049200241
Technical Datasheet:
ABX00022   Datasheet
See all Technical Docs

Product Range Selector (Arduino MKR)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Microchip

:
32bit

:
SAM32

:
ARM

:
Cortex-M0+

:
SAMD21

:
Development Board MKR VIDOR 4000

:
Arduino MKR

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

ARDUINO MKR VIDOR 4000 powerful development board that is capable of performing high speed audio & video processing and will interface with all other Arduino boards and devices. It comes loaded with hardware and potential such as an 8MB SDRAM, a 2MB QSPI flash chip and 1MB allocated for user applications, a Micro HDMI connector, an MIPI camera connector and Wi-Fi & BLE powered by U-BLOX NINA W10 series. This is designed to be highly flexible and easy to configure it also includes the classic MKR interface on which all pins are driven by SAMD21 and FPGA and a MiniPCI Express connector with up to 25 user programmable pins.
  • ARM Cortex-M0+ 32bit plus Cyclone 10 architecture
  • Li-Po single cell, 3.7V, 700mAh minimum battery supported
  • 3.3V operating voltage
  • 32.768KHz (RTC), 48MHz clock speed
  • 256KB flash and 32KB SRAM memory
  • I2C, SPI, UART, mPCI express, MIPI camera, miniHDMI interfaces

Also Known As

GTIN UPC EAN: 7630049200241
