BK1693 -

Bench Power Supply, Adjustable, 1 Output, 1 V, 15 V, 60 A

BK1693 - Bench Power Supply, Adjustable, 1 Output, 1 V, 15 V, 60 A
BK1693 - Bench Power Supply, Adjustable, 1 Output, 1 V, 15 V, 60 A
BK1693 - Bench Power Supply, Adjustable, 1 Output, 1 V, 15 V, 60 A

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
BK1693
Order Code:
2843450
Also Known As:
1693
Technical Datasheet:
BK1693   Datasheet
See all Technical Docs

Product Information

:
Adjustable
:
1 Output
:
1V
:
15V
:
-
:
60A
:
900W
:
100V
:
240V
:
1 Year
:
-
:
-
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

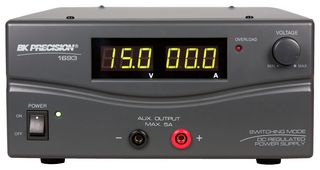

The BK1693 from B&K Precision is a high current switching DC power supply. This lightweight and compact device includes a remote sensing terminal to compensate for voltage drop across load leads. The output voltage level can also be externally controlled via an analogue remote control terminal. The bright red LED for overload/short circuit indication and green LED provide power on/off indication. This power supply comes with one year warranty.
  • Front panel auxiliary output, 3-digit LED displays
  • Variable output voltage is 1 to 15V at 60A
  • Rated auxiliary output current is 5A
  • Current fold back circuitry with illuminated indicator prevents overloading power supply
  • Protections: overtemperature, overvoltage, overload (constant current limiting), short circuit
  • 40mVpp ripple and noise
  • Operating temperature range from 32°F to 104°F (0°C to 40°C), <= 80% R.H
  • 0.1% + 5mV load and 0.05% + 3mV line regulation
  • Efficiency >85%
  • Dimensions is 220mm x 110mm x 360mm (W x H x D), 5.8Kg weight

Contents

BK1693 power supply, Power cord, Instruction manual, Remote control connector.
