BK9832B

AC Power Source, 9800 Series, 2 kVA, 300 V, 20 A, Single Phase, Three Phase

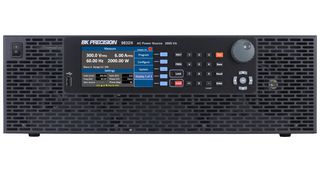

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
BK9832B
Order Code:
3527975
Product Range
9800 Series
Technical Datasheet:
BK9832B   Datasheet
See all Technical Docs

Product Range Selector (9800 Series)

See all from this product range

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
9800 Series

:
2kVA

:
300V

:
20A

:
Single Phase, Three Phase

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The BK9830B Series programmable AC power sources provide high performance and low total harmonic distortion in a 3U form factor. The addition of positive and negative DC offset voltages expands the AC capabilities to operate in DC and AC+DC output coupling modes. The user can select built-in and user-defined harmonic waveforms or select from standard sine, square or clipped sine outputs. The frequency range is adjustable from 45 to 600 Hz in 3-phase mode. Typical applications include Pre-compliance testing, simulate common grid faults, voltage sags, frequency and phase disturbances according to IEC61000-4-11/14/28/34, electromagnetic compatibility (EMC) according to IEC61000-3-2, evaluate transformers, TRIACs, SCRs and passive components.
  • AC, DC and AC+DC power source
  • 3-Phase capability using multiple AC sources and 3-Phase kit (TL983P-KIT)
  • Low total harmonic distortion meets the IEC 61000-3-2 standard
  • Vrms, Arms, Vdc, +/-Apk, Hz, power factor, apparent power, reactive power, true power, crest factor
  • 0.98 power factor at AC input stage
  • Built-in standard waveforms sine, square and clipped sine
  • 30 built-in THD waveforms
  • Amplifier mode with 1.2 kHz bandwidth for generating user-defined arbitrary waveforms
  • Step, List and Pulse modes for generating power line disturbance (PLD) simulations
  • List mode supports 10 user-defined programs with up to 100 programmable steps
  • Generate harmonic waveforms on PC and download them to instrument's 5 non-volatile memory locations
  • Digital I/O port
  • Comprehensive protection modes OVP, OCP, OPP, OTP, fan failure, output timer and key lock
  • Downloadable LabVIEWTM driver and soft panel software for remote control
  • Standard USB (USBTMC-compliant), RS232, LAN, and GPIB remote interfaces

Contents

Programmable AC power source, AC power cord with input connector, Test report & certificate of calibration.

Footnotes

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.

2 total stock globally Need more?

2 delivery in 5-8 working days from our UK warehouse

$12,446.56 ( $14,313.54  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
