DM309
Test Accessory, 8-Channel High Voltage Multiplexer Module with 2 Current Channel

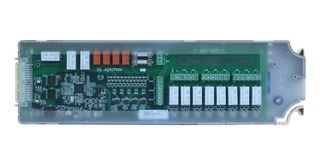

Image is for illustrative purposes only. Please refer to product description.
ManufacturerB&K PRECISION
Manufacturer Part NoDM309
Order Code4680985
Product RangeDAQ3120 Series
Technical Datasheet
4 total stock globally
Need more?
4 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,516.520 ($1,743.998) |
Price for:Each
Minimum: 1
Multiple: 1
$1,516.52 ($1,744.00 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerB&K PRECISION
Manufacturer Part NoDM309
Order Code4680985
Product RangeDAQ3120 Series
Technical Datasheet
Product RangeDAQ3120 Series
SVHCNo SVHC (21-Jan-2025)
Product Overview
DM309 8-CH high voltage multiplexer with 2 current channels increases the maximum measurable voltage from 300 to 600V DC or 400Vrms. The 2 additional current channels handle DC and AC measurements up to 2A without the need of external shunts. For added protection, each current channel connects to a fuse conveniently located within the module. This module supports thermocouple measurements as well, provided there is an external cold junction reference available.
- Scanning speed up to 60 channels per second
- 600V DC or 400Vrms maximum input
- 2-wire and 4-wire measurements
- 2 extra channels for current measurements up to 2A each
- 2-wire armature switching
- 10MHz bandwidth
- 60ch/s speed, 600V DC/400Vrms maximum voltage
- 2A current rating
Technical Specifications
Accessory Type
8-Channel High Voltage Multiplexer Module with 2 Current Channel
Product Range
DAQ3120 Series
For Use With
B&K Precision DAQ3120 Series Data Acquisition Systems
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
7 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:90303370
US ECCN:3A992.a
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.8
