QS186LEQ8

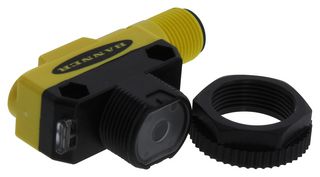

Laser Sensor, Small Spot, 30 m, 10 to 30 VDC, WORLD-BEAM QS18 Series
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | QS186LEQ8Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4241913 |
| Product Range | QS18 Series |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $232.320 ($267.168) |
Product Information
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | QS186LEQ8Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4241913 |
| Product Range | QS18 Series |
| Technical Datasheet | |
| Sensor Type | Photoelectric Sensor |
| Sensing Distance Max | 30m |
| Sensing Range Max | 30m |
| Sensing Method | Opposed Emitter |
| Supply Voltage DC Min | 10V |
| Supply Voltage DC Max | 30V |
| Output Type | - |
| Product Range | QS18 Series |
| Connection Method | 4 Pin M12 Integral Quick Disconnect Connector |
| Supply Voltage Min | 10VDC |
| Supply Voltage Max | 30VDC |
| Light Source | 650nm Red Laser |
| Qualification | - |
| IP Rating | IP67 |
| Operating Temperature Min | -10°C |
| Operating Temperature Max | 50°C |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
QS186LEQ8 is a QS18 series WORLD-BEAM Class 1 laser emitter. Self-contained Class 1 modulated visible laser diode emitter permits higher gain than LEDs and extended range in opposed-mode sensing systems. Narrow effective beam provides small-object detection and precise position control. Bright spot and multiple shapes provide great visual marking of objects. 10VDC to 30V dc operation; third wire extinguishes laser light when connected to +V correct dc.
- Small spot laser shape, IP67 IP rating, visible red laser sensing beam
- DC power, opposed sensing beam, rectangular w/M18 mount housing style
- ABS primary housing material, 30000mm maximum sensing distance
- 4-pin M12 integral QD connection, 250ms delay at power-up
- 18mm barrel diameter, quick disconnect, protected against reverse polarity
- Operating temperature range from -10°C to 50°C
Warnings
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Technical Specifications
| Sensor Type | Photoelectric Sensor |
|---|---|
| Sensing Range Max | 30m |
| Supply Voltage DC Min | 10V |
| Output Type | - |
| Connection Method | 4 Pin M12 Integral Quick Disconnect Connector |
| Supply Voltage Max | 30VDC |
| Qualification | - |
| Operating Temperature Min | -10°C |
| SVHC | No SVHC (15-Jan-2018) |
| Sensing Distance Max | 30m |
|---|---|
| Sensing Method | Opposed Emitter |
| Supply Voltage DC Max | 30V |
| Product Range | QS18 Series |
| Supply Voltage Min | 10VDC |
| Light Source | 650nm Red Laser |
| IP Rating | IP67 |
| Operating Temperature Max | 50°C |
