S18SP6FF100Q
Photoelectric Sensor, 100mm, PNP, Background Suppression/Proximity, 10 to 30VDC, 4 Pin M12 Connector

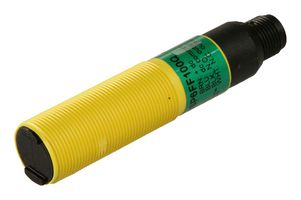

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S18SP6FF100QCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4241909 |
| Product Range | S18 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 8 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $353.570 ($406.6055) |
Price for:Each
Minimum: 1
Multiple: 1
$353.57 ($406.61 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S18SP6FF100QCopy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 4241909 |
| Product Range | S18 Series |
| Technical Datasheet | |
| Sensing Range Max | 100mm |
| Sensor Type | Epoxy Encapsulated Barrel-Mount Sensor |
| Sensing Distance Max | 100mm |
| Sensing Method | Background Suppression, Proximity |
| Sensor Output Type | PNP |
| Product Range | S18 Series |
| Supply Voltage DC Min | 10V |
| Connection Method | 4 Pin M12 Connector |
| Supply Voltage Min | 10V |
| Supply Voltage DC Max | 30V |
| Supply Voltage Max | 30V |
| Qualification | - |
| IP Rating | IP67, IP69K |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 70°C |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
- S18 series DC voltage sensor
- Input voltage range from 10V to 30VDC, 4-pin M12 integral QD connection
- IP67, IP69K rating, infrared LED sensing beam
- DC power, proximity sensing mode, acrylic lens material
- Barrel housing style, thermoplastic primary housing material
- PNP output, 3ms output response time, 750µs repeatability
- 100mm maximum sensing distance, washdown rated, ecolab certified
- Encapsulated, quick disconnect, health/ marginal signal output
- Protected against reverse polarity and transient voltages
- Operating temperature range from -40°C to +70°C, cUL certified
Warnings
Do not use this device for personnel protection. Using this device for personnel protection could result in serious injury or death.
Technical Specifications
| Sensing Range Max | 100mm |
|---|---|
| Sensing Distance Max | 100mm |
| Sensor Output Type | PNP |
| Supply Voltage DC Min | 10V |
| Supply Voltage Min | 10V |
| Supply Voltage Max | 30V |
| IP Rating | IP67, IP69K |
| Operating Temperature Max | 70°C |
| Sensor Type | Epoxy Encapsulated Barrel-Mount Sensor |
|---|---|
| Sensing Method | Background Suppression, Proximity |
| Product Range | S18 Series |
| Connection Method | 4 Pin M12 Connector |
| Supply Voltage DC Max | 30V |
| Qualification | - |
| Operating Temperature Min | -40°C |
| SVHC | No SVHC (15-Jan-2018) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Mexico Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .048 |
