S18UBAQ
Ultrasonic Sensor, Straight, 300 mm, NPN/PNP, 10 to 30 VDC, M12 Connector, U-GAGE S18U Series

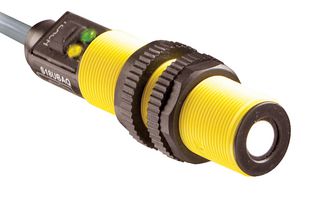

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S18UBAQCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4241917 |
| Product Range | S18U Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $731.590 ($841.3285) |
Price for:Each
Minimum: 1
Multiple: 1
$731.59 ($841.33 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S18UBAQCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4241917 |
| Product Range | S18U Series |
| Technical Datasheet | |
| Sensing Range Min | 30mm |
| Sensing Range Max | 300mm |
| Beam Angle | - |
| Switching Frequency | 300kHz |
| External Diameter | 18mm |
| Sensitivity (dB) | - |
| Operating Temperature Min | -20°C |
| Operating Temperature Max | 60°C |
| Product Range | S18U Series |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
- U-GAGE™ S18U series sensor with discrete output
- Input voltage range from 10V to 30VDC, 5-pin M12 integral QD connection
- Ultrasonic sensing beam, DC power, IP67 IP rating
- Proximity sensing beam, barrel - straight housing style
- ABS/polycarbonate primary housing material, 30mm to 300mm sensing distance
- Bipolar (NPN & PNP) discrete (switched) outputs
- 300KHz ultrasonic frequency, remote teach
- Clear object detection, quick disconnect, ultrasonic
- Operating temperature range from -20°C to +60°C
Warnings
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death.
Technical Specifications
| Sensing Range Min | 30mm |
|---|---|
| Beam Angle | - |
| External Diameter | 18mm |
| Operating Temperature Min | -20°C |
| Product Range | S18U Series |
| Sensing Range Max | 300mm |
|---|---|
| Switching Frequency | 300kHz |
| Sensitivity (dB) | - |
| Operating Temperature Max | 60°C |
| SVHC | No SVHC (15-Jan-2018) |
Technical Docs (2)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .008391 |
