S24AS-D-MQP
Dew Point Sensor, 0% to 100% Relative Humidity, 4.5% Accuracy, 10 to 30 VDC, RS485 Output

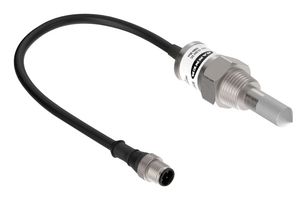

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S24AS-D-MQPCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4295216 |
| Product Range | S24 Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $675.530 ($776.8595) |
Price for:Each
Minimum: 1
Multiple: 1
$675.53 ($776.86 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BANNER ENGINEERING |
|---|---|
| Manufacturer Part No | S24AS-D-MQPCopy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 4295216 |
| Product Range | S24 Series |
| Technical Datasheet | |
| Sensor Output Type | RS485 |
| Humidity Range | 0% to 100% Relative Humidity |
| Supply Voltage Min | 10VDC |
| Sensor Terminals | Cable with Connector |
| Supply Voltage Max | 30VDC |
| Sensing Accuracy | 4.5% |
| Sensor Mounting | Panel Mount |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 70°C |
| Product Range | S24 Series |
| Qualification | - |
| SVHC | No SVHC (15-Jan-2018) |
Product Overview
S24AS-D-MQP is a S24 dewpoint sensor. The S24 dewpoint sensor monitors compressed air quality to help prevent damage to equipment and manufactured goods.
- Monitors dew point, humidity, and temperature in a compressed air system
- Stainless steel housing with an integrated 1/2 NPT process connection
- Provides serial data output for use in a control system
- Installs in the main distribution line or downstream line
- Dew point sensor with Modbus function
- One 1/2" male NPT process connection, 12" cable with a moulded 4-pin M12 quick disconnect connector
- Supply voltage is 10VDC to 30VDC at 50mA maximum, active comms at 30VDC: 4.5mA supply current
- 316L stainless steel housing, nickel-plated brass coupling, PVC strain relief
- Dew point measuring range from -116°C to 85°C, operating pressure range from 1 to 13bar
- 0.1°C resolution, operating temperature range from -40°C to +70°C
Notes
Electrical connections must be made by qualified personnel in accordance with local and national electrical codes and regulations.
Technical Specifications
| Sensor Output Type | RS485 |
|---|---|
| Supply Voltage Min | 10VDC |
| Supply Voltage Max | 30VDC |
| Sensor Mounting | Panel Mount |
| Operating Temperature Max | 70°C |
| Qualification | - |
| Humidity Range | 0% to 100% Relative Humidity |
|---|---|
| Sensor Terminals | Cable with Connector |
| Sensing Accuracy | 4.5% |
| Operating Temperature Min | -40°C |
| Product Range | S24 Series |
| SVHC | No SVHC (15-Jan-2018) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365019 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Y-Ex RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (15-Jan-2018) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .177273 |
