SM312LVQD
Photoelectric Sensor, 5 m, NPN/PNP, Non Polarized Retroreflective, 10 to 30 VDC, 4 Pin M12 Connector

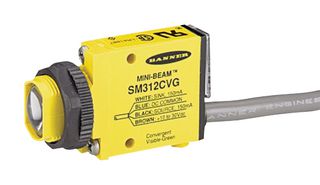

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBANNER ENGINEERING
Manufacturer Part NoSM312LVQD
Order Code4241910
Product RangeMini-Beam Series
Your Part Number
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 10 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $311.500 ($358.225) |
Price for:Each
Minimum: 1
Multiple: 1
$311.50 ($358.22 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerBANNER ENGINEERING
Manufacturer Part NoSM312LVQD
Order Code4241910
Product RangeMini-Beam Series
Technical Datasheet
Sensing Range Max5m
Sensor TypeSelf-Contained Photoelectric Sensor
Sensing Distance Max5m
Sensing MethodNon Polarized Retroreflective
Sensor Output TypeNPN / PNP
Output TypeNPN Open Collector / PNP
Product RangeMini-Beam Series
Supply Voltage DC Min10V
Connection Method4 Pin M12 Connector
Supply Voltage Min10VDC
Supply Voltage DC Max30V
Supply Voltage Max30VDC
Light Source650nm Red LED
Qualification-
IP RatingIP67
Operating Temperature Min-20°C
Operating Temperature Max70°C
SVHCNo SVHC (15-Jan-2018)
Product Overview
SM312LVQD is a MINI-BEAM® DC voltage series sensor.
- 10V to 30VDC input voltage with bipolar NPN/PNP outputs
- IP67 IP rating
- Visible red LED sensing beam, DC power
- Non polarized retroreflective sensing mode, rectangular w/M18 mount housing style
- Thermoplastic primary housing material, 5000mm maximum sensing distance
- 4-pin M12 integral QD connection, 100ms delay at power-up
- 300µs repeatability, acrylic lens material, encapsulated, quick disconnect
- 5m sensing range, visible red, 650nm LED range
- Protected against reverse polarity and transient voltages
- Operating temperature range from -20°C to +70°C
Technical Specifications
Sensing Range Max
5m
Sensing Distance Max
5m
Sensor Output Type
NPN / PNP
Product Range
Mini-Beam Series
Connection Method
4 Pin M12 Connector
Supply Voltage DC Max
30V
Light Source
650nm Red LED
IP Rating
IP67
Operating Temperature Max
70°C
Sensor Type
Self-Contained Photoelectric Sensor
Sensing Method
Non Polarized Retroreflective
Output Type
NPN Open Collector / PNP
Supply Voltage DC Min
10V
Supply Voltage Min
10VDC
Supply Voltage Max
30VDC
Qualification
-
Operating Temperature Min
-20°C
SVHC
No SVHC (15-Jan-2018)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:85365019
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (15-Jan-2018)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.086
