100A -

Test Accessory, Connector, 1 GHz, 50 ohm, Beehive EMC Probe Amplifiers, 100 Series

100A - Test Accessory, Connector, 1 GHz, 50 ohm, Beehive EMC Probe Amplifiers, 100 Series

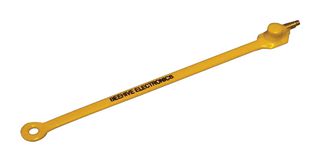

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
100A
Order Code:
2806223
Technical Datasheet:
100A   Datasheet
See all Technical Docs

Product Information

:
Connector
:
1GHz
:
50ohm
:
-
:
Beehive EMC Probe Amplifiers
:
100 Series
Find similar products Choose and modify the attributes above to find similar products.

Product Overview

The 100A from Beehive Electronics is a 100 series EMC probe. It is a small, handheld magnetic field probe which is ideal for locating the sources of EMC emissions. Its integrated electrostatic shield offers good common mode rejection and its fine spatial resolution make it easy to track a source of emissions down to the offending component. This EMC probe is designed for identifying and fixing EMC problems. It delivers excellent repeatability. Because of the planar construction of the probe, even the large loops are only 0.11" thick, allowing the probe to be inserted into narrow seams and gaps. Typical applications include finding sources of EMC emissions problems, injecting fields into circuits to identify those which are EMC susceptible and non-invasive probing of RF circuits.
  • Integrated electrostatic shield in the loop probe eliminates common mode pick-up
  • Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
  • Probe dimensions optimized for access to tight spaces
  • Medium loop, 0.5inch tip diameter, 0.4inch loop diameter
  • Loop probe and sensitive to magnetic field
  • Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
  • Probe can be used to measure the signals present on an operational PC board
  • Length is 6.35inch (excluding connector) and probe tip thickness is 0.11"

Related Searches

5 total stock globally

5 available for 4 - 5 business days delivery

Check Stock & Lead Times

More stock available week commencing 21/10/19

$195.22 ( $224.50 Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $195.22 ($224.50)
  ( )



Pricing is unavailable. Please contact customer services.
