100B

Test Accessory, Connector, 3.1 GHz, 50 ohm, Beehive EMC Probe Amplifiers, 100 Series

100B - Test Accessory, Connector, 3.1 GHz, 50 ohm, Beehive EMC Probe Amplifiers, 100 Series

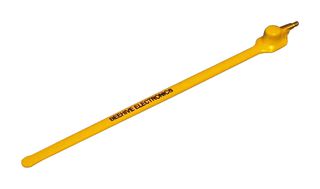

Image is for illustrative purposes only. Please refer to product description.

Manufacturer Part No:
100B
Order Code:
2806224
Technical Datasheet:
100B   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Connector

:
3.1GHz

:
50ohm

:
-

:
Beehive EMC Probe Amplifiers

:
100 Series

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The 100B from Beehive Electronics is a 100 series EMC probe EMC probe. The magnetic field probe has the smallest loop of any probe in the series. It offers the best spatial resolution and high-frequency response of the magnetic field probes but has lower sensitivity than the 100A or 100C. This loop probe has integrated electrostatic shields, providing isolation from common mode signals. As a result, this probe delivers excellent repeatability. Because of the planar construction of the probes, even the large loops are only 0.11" thick, allowing the probe to be inserted into narrow seams and gaps.
  • Integrated electrostatic shield in the loop probe eliminates common mode pick-up
  • Multiple loop sizes offer optimum sensitivity and spatial resolution at different frequencies
  • Probe dimensions optimized for access to tight spaces
  • Small loop, 0.25inch tip diameter, 0.15inch loop diameter
  • Loop probe and sensitive to magnetic field
  • Can be driven by a signal source to generate fields for electromagnetic susceptibility testing
  • Probe can be used to measure the signals present on an operational PC board
  • Length is 6.35inch (excluding connector) and probe tip thickness is 0.11"
