1503A 010U1000
Multipair Cable, Audio, Screened, 1 Pair, 22 AWG, 0.352 mm², 1000 ft, 304.8 m

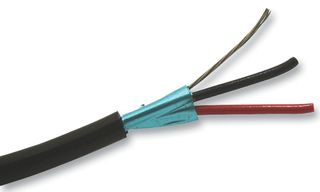

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 1503A 010U1000Copy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 1423225 |
| Your Part Number | |
| Technical Datasheet |
3 total stock globally
Need more?
3 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $992.920 ($1,141.858) |
Price for:1 Reel: (1000ft/304.8m)
Minimum: 1
Multiple: 1
$992.92 ($1,141.86 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 1503A 010U1000Copy |
| Manufacturer Standard Lead Time | 27 weeks |
| Order Code | 1423225 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 1 Pair |
| Wire Gauge | 22AWG |
| Reel Length (Imperial) | 1000ft |
| Reel Length (Metric) | 304.8m |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 30mm |
| Voltage Rating | 300V |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 3.607mm |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview
The 1503A 010U1000 is a 1000ft 1-pair Audio Cable with 22AWG stranded (7 x 30) tinned copper conductors, PVC insulation, twisted pair, overall Beldfoil aluminium foil-polyester tape shield (100% coverage) and black PVC jacket. Belden multi-conductor cable deliver low voltage analog data and signal transmission within enclosures from controllers and I/O's to devices such as temperature and pressure sensors, relays, valves, meters, thermocouples, solenoids, actuators, contactors, push buttons and alarms.
- CPR: Eca
- 38Ω Nominal characteristic impedance
- 0.18μH/ft Nominal inductance
- 66% Nominal velocity of propagation
- 14.7Ω/1000ft at 20°C Nominal conductor DC resistance
- 18Ω/1000ft at 20°C Nominal outer shield DC resistance
- UL1666 Riser flame tested
Applications
Audio
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 22AWG |
| Reel Length (Metric) | 304.8m |
| No. of Max Strands x Strand Size | 7 x 30mm |
| Jacket Material | PVC |
| External Diameter | 3.607mm |
| SVHC | To Be Advised |
| No. of Pairs | 1 Pair |
|---|---|
| Reel Length (Imperial) | 1000ft |
| Jacket Colour | Black |
| Voltage Rating | 300V |
| Conductor Material | Tinned Copper |
| Product Range | - |
Technical Docs (1)
Alternatives for 1503A 010U1000
1 Product Found
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 7.245 |
