7929A 0101000
Networking Cable, DataTuff®, Screened, Cat5e, 24 AWG, 1000 ft, 304.8 m
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 7929A 0101000Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1769527 |
| Product Range | DataTuff Series |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 30 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,994.070 ($2,293.1805) |
| 5+ | $1,868.590 ($2,148.8785) |
Price for:1 Reel: (1000ft/304.8m)
Minimum: 1
Multiple: 1
$1,994.07 ($2,293.18 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 7929A 0101000Copy |
| Manufacturer Standard Lead Time | 30 weeks |
| Order Code | 1769527 |
| Product Range | DataTuff Series |
| Technical Datasheet | |
| Cable Shielding | Screened |
| LAN Category | Cat5e |
| Wire Gauge | 24AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 1000ft |
| Reel Length (Metric) | 304.8m |
| No. of Pairs | 4 Pair |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | Solid |
| Voltage Rating | 300V |
| Jacket Material | PVC |
| Conductor Material | Copper |
| External Diameter | 6.73mm |
| Product Range | DataTuff Series |
| SVHC | No SVHC (19-Jan-2021) |
Product Overview

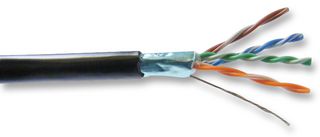

The 7929A 0101000 is a 4-pair CAT-5e shielded DataTuff® Twisted Pair Cable with solid bare copper conductor and a polyolefin insulator. This networking cable comes with industrial grade sunlight and oil-resistant PVC jacket, aluminium foil-polyester tape Beldfoil® shield (100% coverage) and a 24AWG tinned copper drain wire.
- CPR: Eca
- 177.92N Maximum recommended pulling tension
- 49.21pF/m Nominal mutual capacitance
- 70% Nominal velocity of propagation
- 9.38Ω/100m Maximum conductor DC resistance (DCR)
Applications
Communications & Networking, Industrial
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | 1000ft |
| No. of Pairs | 4 Pair |
| No. of Max Strands x Strand Size | Solid |
| Jacket Material | PVC |
| External Diameter | 6.73mm |
| SVHC | No SVHC (19-Jan-2021) |
| LAN Category | Cat5e |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | 304.8m |
| Jacket Colour | Black |
| Voltage Rating | 300V |
| Conductor Material | Copper |
| Product Range | DataTuff Series |
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (19-Jan-2021) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 17 |
