8471
Multipair Cable, Chrome, Unscreened, 1 Pair, 16 AWG

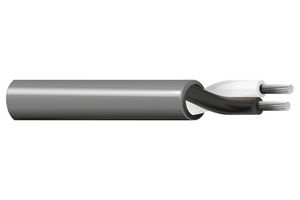

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 8471Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 2924973 |
| Your Part Number | |
| Technical Datasheet |
119 total stock globally
Need more?
119 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $9.910 ($11.3965) |
| 10+ | $9.550 ($10.9825) |
| 25+ | $9.240 ($10.626) |
| 50+ | $8.580 ($9.867) |
Price for:1 Metre
Minimum: 1
Multiple: 1
$9.91 ($11.40 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 8471Copy |
| Manufacturer Standard Lead Time | 9 weeks |
| Order Code | 2924973 |
| Technical Datasheet | |
| Cable Shielding | Unscreened |
| No. of Pairs | 1 Pair |
| Wire Gauge | 16AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 19 x 29AWG |
| Voltage Rating | 300Vrms |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 6.9mm |
| Product Range | - |
| SVHC | No SVHC (07-Jul-2017) |
Product Overview
8471 is an electronic multipair cable. Suitable applications include low voltage analogue signals (4-20mA, 0-10v, ...), low voltage digital control (24v, …), line level audio, computer communication, and panel wiring.
- 16 AWG, 19x29 stranding, tinned copper conductor
- 0.105in (2.67mm) diameter, black and white, polyvinyl chloride insulation
- 0.274in (6.96mm) nominal diameter, polyvinyl chloride outer jacket
- UL voltage rating: 300V (CMG), 300V (UL AWM 2598)
- Operating temperature range from -20°C to +60°C
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Unscreened |
|---|---|
| Wire Gauge | 16AWG |
| Reel Length (Imperial) | - |
| Jacket Colour | Chrome |
| Voltage Rating | 300Vrms |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 1 Pair |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | - |
| No. of Max Strands x Strand Size | 19 x 29AWG |
| Jacket Material | PVC |
| External Diameter | 6.9mm |
| SVHC | No SVHC (07-Jul-2017) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Netherlands Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (07-Jul-2017) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .034892 |
