Twinaxial Cable, 20 AWG, 0.51 mm², 78 ohm, Blue, 498.69 ft, 152.4 m

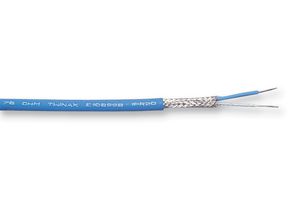

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9272 006U500Copy |
| Manufacturer Standard Lead Time | 39 weeks |
| Order Code | 1182075 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $1,545.750 ($1,777.6125) |
| 6+ | $1,425.330 ($1,639.1295) |
Price for:1 Reel: (498.69ft/152.4m)
Minimum: 1
Multiple: 1
$1,545.75 ($1,777.61 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9272 006U500Copy |
| Manufacturer Standard Lead Time | 39 weeks |
| Order Code | 1182075 |
| Technical Datasheet | |
| Wire Gauge | 20AWG |
| Conductor Area CSA | 0.51mm² |
| Impedance | 78ohm |
| Jacket Colour | Blue |
| Reel Length (Imperial) | 498.69ft |
| Reel Length (Metric) | 152.4m |
| No. of Max Strands x Strand Size | 7 x 0.32mm |
| Conductor Material | Tinned Copper |
| Jacket Material | PVC |
| External Diameter | 6.2mm |
| Product Range | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
The 9272 006U500 is a Twinaxial Cable with stranded tinned copper conductor and polyethylene insulation. This twinaxial cable comes with a blue PVC jacket and tinned copper braid shield (93% coverage).
- CPR: Eca
- 68lbs Maximum recommended pulling tension
- 0.020µH/ft Nominal inductance
- 66% Nominal velocity of propagation
- 9.5Ω/1000ft at 20°C Nominal conductor DC resistance (DCR)
- 3.4Ω/1000ft at 20°C Nominal outer shield DC resistance (DCR)
Applications
Communications & Networking
Technical Specifications
| Wire Gauge | 20AWG |
|---|---|
| Impedance | 78ohm |
| Reel Length (Imperial) | 498.69ft |
| No. of Max Strands x Strand Size | 7 x 0.32mm |
| Jacket Material | PVC |
| Product Range | - |
| Conductor Area CSA | 0.51mm² |
|---|---|
| Jacket Colour | Blue |
| Reel Length (Metric) | 152.4m |
| Conductor Material | Tinned Copper |
| External Diameter | 6.2mm |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 8.74 |
