9829

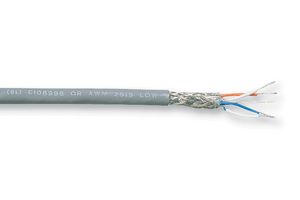

Multipair Cable, Computer EIA RS232/422, Per M, Screened, 2 Pair, 24 AWG
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9829Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1218666 |
| Your Part Number | |
| Technical Datasheet |
257 total stock globally
Need more?
257 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $20.750 ($23.8625) |
| 10+ | $20.060 ($23.069) |
| 25+ | $19.360 ($22.264) |
| 50+ | $18.000 ($20.700) |
Price for:1 Metre
Minimum: 1
Multiple: 1
$20.75 ($23.86 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9829Copy |
| Manufacturer Standard Lead Time | 14 weeks |
| Order Code | 1218666 |
| Technical Datasheet | |
| Cable Shielding | Screened |
| No. of Pairs | 2 Pair |
| Wire Gauge | 24AWG |
| Conductor Area CSA | - |
| Reel Length (Imperial) | - |
| Reel Length (Metric) | - |
| Jacket Colour | Chrome |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Voltage Rating | 30V |
| Jacket Material | PVC |
| Conductor Material | Tinned Copper |
| External Diameter | 7.39mm |
| Product Range | - |
| SVHC | No SVHC (10-Jun-2022) |
Product Overview
The 9829 is a 2-pair 4-conductor low capacitance shielded Computer Cable with tinned copper conductors with polyethylene insulation. It has twisted pair conductors, outer shield of 100% overall aluminium foil-polyester tape with shorting fold coverage and 65% TC braid coverage.
- CPR: Not Yet Qualified
- 57lb Maximum recommended pulling tension
- 100Ω Impedance
- 2.1A at 25°C Current per conductor
- -30 to 80°C Operating temperature range
Applications
Computers & Computer Peripherals, Communications & Networking
Notes
Splice-free continuous cable is available (Max Length: xx meters). Packaging is based on order size: < 10 Meters: Coil/Bag Pack, > 10 Meters: Paper Spool Pack.
Technical Specifications
| Cable Shielding | Screened |
|---|---|
| Wire Gauge | 24AWG |
| Reel Length (Imperial) | - |
| Jacket Colour | Chrome |
| Voltage Rating | 30V |
| Conductor Material | Tinned Copper |
| Product Range | - |
| No. of Pairs | 2 Pair |
|---|---|
| Conductor Area CSA | - |
| Reel Length (Metric) | - |
| No. of Max Strands x Strand Size | 7 x 32AWG |
| Jacket Material | PVC |
| External Diameter | 7.39mm |
| SVHC | No SVHC (10-Jun-2022) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85444995 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (10-Jun-2022) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .075 |
