| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9907 E4X500Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1182073 |
| Your Part Number | |
| Technical Datasheet |
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2,163.710 ($2,488.2665) |
| 2+ | $2,120.450 ($2,438.5175) |
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | 9907 E4X500Copy |
| Manufacturer Standard Lead Time | 16 weeks |
| Order Code | 1182073 |
| Technical Datasheet | |
| Coaxial Cable Type | RG58A |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 498.69ft |
| Reel Length (Metric) | 152.4m |
| External Diameter | 4.7mm |
| Impedance | 50ohm |
| Jacket Colour | Grey |
| Jacket Material | PVC |
| No. of Max Strands x Strand Size | 19 x 0.2mm |
| Product Range | - |
| Wire Gauge | 20AWG |
| Conductor Material | Copper |
Product Overview

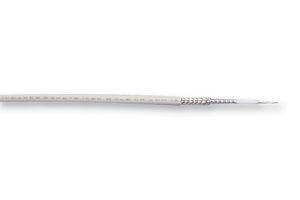

The 9907 E4X500 is a Coaxial Cable with stranded tinned copper conductor and foam polyethylene insulation. This RG58A coaxial cable comes with a grey PVC jacket, Duofoil® bonded aluminium foil-polyester tape shield (100% coverage) and Duobond® II tinned copper braid shield (93% coverage). The Duobond II (foil/braid) is a laminated shielding tape consisting of aluminium foil with an extra layer of heat-sensitive adhesive bonding the foil shield to the dielectric core. This foil shield provides 100% coverage and ensures maximum shield protection with an outer braid applied for greater protection against interference and to increase the overall tensile strength. The coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, this cable is used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna.
- CPR: Eca
- 45lbs Maximum recommended pulling tension
- 80% Nominal velocity of propagation
- 8.8Ω/1000ft at 20°C Nominal conductor DC resistance (DCR)
- 5.8Ω/1000ft at 20°C Nominal outer shield DC resistance (DCR)
- -40 to 80°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
| Coaxial Cable Type | RG58A |
|---|---|
| Reel Length (Imperial) | 498.69ft |
| External Diameter | 4.7mm |
| Jacket Colour | Grey |
| No. of Max Strands x Strand Size | 19 x 0.2mm |
| Wire Gauge | 20AWG |
| Conductor Area CSA | - |
|---|---|
| Reel Length (Metric) | 152.4m |
| Impedance | 50ohm |
| Jacket Material | PVC |
| Product Range | - |
| Conductor Material | Copper |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | United States Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 5.34 |
