| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | MRG1791.0050Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1423300 |
| Your Part Number | |
| Technical Datasheet |
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $369.460 ($424.879) |
| 6+ | $357.580 ($411.217) |
| 30+ | $355.930 ($409.3195) |
Product Information
| Manufacturer | BELDEN |
|---|---|
| Manufacturer Part No | MRG1791.0050Copy |
| Manufacturer Standard Lead Time | 11 weeks |
| Order Code | 1423300 |
| Technical Datasheet | |
| Coaxial Cable Type | RG179 |
| Conductor Area CSA | - |
| Reel Length (Imperial) | 164ft |
| Reel Length (Metric) | 50m |
| External Diameter | 2.8mm |
| Impedance | 75ohm |
| Jacket Colour | Black |
| Jacket Material | PVC |
| No. of Max Strands x Strand Size | 7 x 0.1mm |
| Product Range | - |
| Wire Gauge | - |
| Conductor Material | Copper |
| SVHC | To Be Advised |
Product Overview

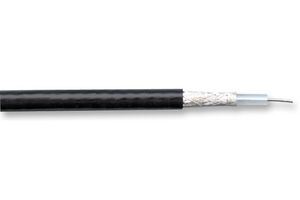

The MRG1791.0050 is a 164ft RG179 Coaxial Cable with silver-plated copper cladded steel inner conductor, solid PE dielectric, tinned copper braid and PVC sheath. This coaxial communication cable based on MIL-C-17. This coaxial cable is perhaps the most common, basic and easy-to-understand cables. Basically, they are used to transmit electrical energy or signals, from one location to another, to connect a source to a load, such as a transmitter to an antenna. Coaxial cable (coax) is typically identified or classified according to its impedance or RG-type. Belden® coaxial cable is tested with equipment that simulates every known environmental and electrical performance condition. As a result, this cable can be counted on for positive, reliable and trouble-free operation.
- CPR: Fca
- ≤802Ω/km DC resistance inner conductor
- 67 ±3pF/m Capacitance
- -25 to +70°C Operating temperature range
Applications
Communications & Networking
Technical Specifications
| Coaxial Cable Type | RG179 |
|---|---|
| Reel Length (Imperial) | 164ft |
| External Diameter | 2.8mm |
| Jacket Colour | Black |
| No. of Max Strands x Strand Size | 7 x 0.1mm |
| Wire Gauge | - |
| SVHC | To Be Advised |
| Conductor Area CSA | - |
|---|---|
| Reel Length (Metric) | 50m |
| Impedance | 75ohm |
| Jacket Material | PVC |
| Product Range | - |
| Conductor Material | Copper |
Technical Docs (1)
Associated Products
1 Product Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85442000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .567 |
