99-1437-814-05

Circular Connector, 763 Series, Cable Mount Plug, 5 Contacts, Screw Pin, Metal Body

99-1437-814-05 - Circular Connector, 763 Series, Cable Mount Plug, 5 Contacts, Screw Pin, Metal Body
99-1437-814-05 - Circular Connector, 763 Series, Cable Mount Plug, 5 Contacts, Screw Pin, Metal Body

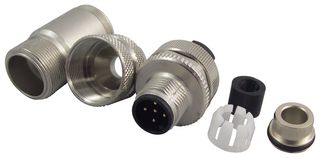

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BINDER BINDER
Manufacturer Part No:
99-1437-814-05
Order Code:
1778727
Product Range
763 Series
Technical Datasheet:
99-1437-814-05   Datasheet
See all Technical Docs

Product Overview

The 99-1437-814-05 is a 5-contact 125V/4A male Circular Connector with gold-plated brass contacts, PA contact body and nickel-plated zinc die-casting housing. The 713 series plug with EMI shielded, metal locking ring, M12 screw locking system, screwing termination, cable mounting style. It accepts 18AWG (0.75mm²) wire, 4 to 6mm cable outlet.
  • 1500V Rated impulse voltage
  • <=3mR Volume resistivity
  • >100 mating cycles Mechanical operation
  • IP67 Protection rating

Applications

Automation & Process Control, Industrial, Sensing & Instrumentation, Commercial, Consumer Electronics

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
763 Series

:
Cable Mount Plug

:
5Contacts

:
Screw Pin

:
-

:
Metal Body

:
-

:
Brass

:
Gold

Find similar products Choose and modify the attributes above to find similar products.
