DR331-513AE
Choke, Data Line, Surface Mount, 51 µH, DR331 Series, 500 mA, 7.3mm x 5.4mm x 4.7mm

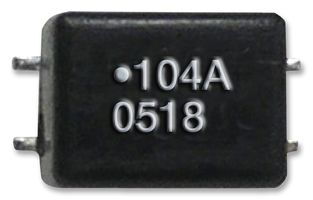

Image is for illustrative purposes only. Please refer to product description.
ManufacturerBOURNS
Manufacturer Part NoDR331-513AE
Order Code2786935
Product RangeDR331 Series
Technical Datasheet
12,000 total stock globally
Need more?
12000 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1500+ | $0.846 ($0.9729) |
| 7500+ | $0.748 ($0.8602) |
| 15000+ | $0.744 ($0.8556) |
Price for:Each (Supplied on Full Reel)
Minimum: 1500
Multiple: 1500
$1,269.00 ($1,459.35 inc GST)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerBOURNS
Manufacturer Part NoDR331-513AE
Order Code2786935
Product RangeDR331 Series
Technical Datasheet
DC Current Rating500mA
Inductance51µH
Product RangeDR331 Series
Impedance-
Inductor Case / Package-
Product Length7.3mm
Product Width5.4mm
Product Height4.7mm
Qualification-
SVHCNo SVHC (21-Jan-2025)
Product Overview
The DR331-513AE from Bourns is a DR331 series surface mount data line choke. It has wide frequency range over 1000MHz. The choke features open construction is more economical than DR332 series applications. It is used for the suppression of EMI in data and signal lines (example CAN bus).
- 51µH ±25% L (1-4) at 100KHz, 0.1Vrms
- 2µH LL (1-4) at 100KHz, 0.1Vrms (typ) (2-3 short)
- 0.30 ohm maximum RDC (winding)
- 0.5A maximum rated current
- Sector winding, 260°C (10sec) resistance to solder heat
- Rated voltage is 80VDC/42VAC
- Operating temperature range from -40°C to +135°C
- 250VAC/60Hz, 3mA hipot (1sec)
- Ferrite core, enamelled copper wire (class F) wire, phenolic (UL 94V-0) base
- Cu/Ni/Sn terminal, epoxy resin adhesive
Applications
Signal Processing
Technical Specifications
DC Current Rating
500mA
Product Range
DR331 Series
Inductor Case / Package
-
Product Width
5.4mm
Qualification
-
Inductance
51µH
Impedance
-
Product Length
7.3mm
Product Height
4.7mm
SVHC
No SVHC (21-Jan-2025)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000303
