RS-485EVALBOARD2

Evaluation Board, TBU-CA065-300-WH, For RS485 Port Protection, High Speed Performance

BOURNS RS-485EVALBOARD2

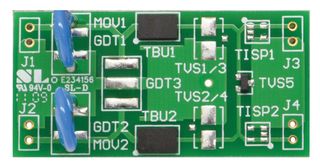

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BOURNS BOURNS
Manufacturer Part No:
RS-485EVALBOARD2
Order Code:
1871189
Technical Datasheet:
RS-485EVALBOARD2   Datasheet
See all Technical Docs

Product Overview

RS-485EVALBOARD2 evaluation board serves as an aid in evaluating circuit protection on RS-485 serial device port solutions using Bourns TBU High-Speed Protectors (HSPs), MOVs and TVS products to meet the required industry standards on RS-485 port interfaces. The recommended Bourns TBU HSP device solution on RS-485EVALBOARD2, offers enhanced high-speed performance features over competing technologies, which can help the design engineer increase the surge and transient protection level on RS-485 ports and place the entire circuit protection solution into a reduced PCB area. Bourns has developed an RS-485 Evaluation Board (measuring 50mm x 25mm x 1.2mm) manufactured using FR4 PCB with nickel gold plating on the top and bottom sides.
  • Serves as an aid in evaluating circuit protection on RS-485 serial device ports
  • 2 Bourns TBU HSPs, 2 MOVs and 2 TVS diodes meet required standards on RS-485 port interfaces
  • Recommended Bourns TBU HSP solution offer enhanced performance feature over competing technologies
  • Places the entire circuit protection solution into a smaller reduced PCB area (50mm x 25mm x 1.2mm)
  • Manufactured using FR4 PCB with nickel gold plating on the top and bottom sides

Applications

Power Management, Building Automation, Communications & Networking, Security, Industrial

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Interface

:
RS485 Transceivers

:
Texas Instruments

:
TBU-CA065-300-WH

:
-

:
Eval Board TBU-CA065-300-WH

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (3)

Available for back order

More stock available to supplier lead times which is approximately 27/09/21

Notify me when back in stock

$26.66 ( $30.66  Inc. GST)
