8R4E36E03C3003
Circular Connector, BRAD Micro-Change 120011 Series, Panel Mount Plug, 4 Contacts, Crimp Pin
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $61.050 ($70.2075) |
| 10+ | $50.880 ($58.512) |
| 20+ | $49.770 ($57.2355) |
| 60+ | $49.730 ($57.1895) |
| 100+ | $49.430 ($56.8445) |
| 260+ | $47.930 ($55.1195) |
Product Information
Product Overview

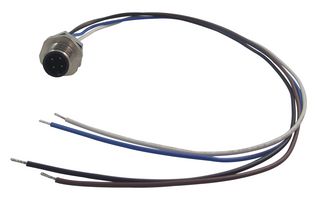

The 8R4E36E03C3003 is a 4-pole single-ended front panel mount Circular Connector with nickel-plated brass body. The Micro-Change® (M12) industry standard connector is rugged, compact and sealed connector used for sensor/actuator connectivity in industrial control applications. The Micro-Change® (M12) connector is designed to withstand harsh-industrial and weather environments with superior quality that assures very reliable connections for control elements in automated equipment. This high-quality connector allows fast and simple replacement of sensors, encoders, switches and other input and output devices in industrial machinery.
- External thread coupling
- M14 x 1.0 Mounting thread
- 4A Maximum current per contact
- 250VAC/DC Maximum voltage
- IP67 Protection
Applications
Sensing & Instrumentation, Industrial, Automation & Process Control
Technical Specifications
BRAD Micro-Change 120011 Series
4Contacts
Threaded
Nickel
Gold
Panel Mount Plug
Crimp Pin
-
-
Lead (17-Jan-2023)
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Poland
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
