AEDR-8300-1Q2

Rotary Encoder, Reflective, Optical, Incremental, 180 LPI, 0 Detents, Vertical, Without Push Switch

AEDR-8300-1Q2 - Rotary Encoder, Reflective, Optical, Incremental, 180 LPI, 0 Detents, Vertical, Without Push Switch

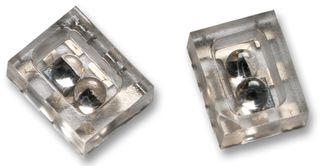

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
BROADCOM BROADCOM
Manufacturer Part No:
AEDR-8300-1Q2
Order Code:
1161103
Product Range
AEDR-8300 Series
Technical Datasheet:
AEDR-8300-1Q2   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Optical

:
Incremental

:
180LPI

:
0 Detents

:
Vertical

:
Without Push Switch

:
Quadrature

:
Surface Mount

:
AEDR-8300 Series

:
-

:
2Channels

:
No Shaft

:
4.5V

:
5.5V

:
-20°C

:
+85°C

:
Solder Pin

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (2)

Product Overview

The AEDR-8300-1Q2 is a Reflective Optical Encoder for high volume applications. The AEDR-8300 series is the smallest optical encoder technology for motion control purposes. The encoder houses an LED light source and a photo-detecting circuitry. It offers two-channel quadrature digital outputs. Being TTL compatible, the outputs of the AEDR-8300 series can be interfaced directly with most of the signal processing circuitries. Hence the encoder provides great design-in flexibility and easy integration into existing systems.
