AFBR-S4E001
EVAL BRD, SILICON PHOTOMULTIPLIER SENSOR
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $550.240 ($632.776) |
| 5+ | $483.810 ($556.3815) |
Product Information
Product Overview

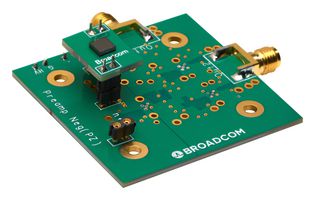

Evaluation kit for silicon photomultipliers in a single package, designed for evaluation, device characterization and prototyping. It features an AFBR-S4N44C013 SiPM and a preamplifier with two 50 ohm signal outputs (one for photon counting one for timing). It is designed for applications targeting at detection of short light pulses/flashes from, e.g. pulsed lasers or scintillators. Common applications include X and γ ray spectrometry, prototyping, device characterization and PET. Two evaluation kits are required for coincidence measurements.
- One AFBR-S4N44C013 SiPM soldered on interposer PCB
- Preamplifier board compatible with the AFBR-S4NxxC01y SiPM family
- Designed for applications involving many photons, typically produced by a scintillator
- Operating temperature range from –20°C to +50°C
Contents
Evaluation board, 1x AFBR-S4N44C013 SiPM (mounted on a test PCB).
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Technical Specifications
Evaluation Kit
Silicon Photomultiplier Sensor (SiPM)
AFBR-S4NxxC01y
Eval Board AFBR-S4N44C013 SiPM
Technical Docs (3)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Philippines
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
