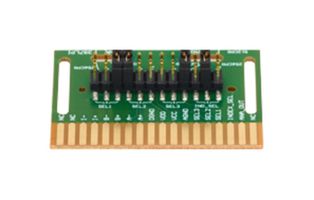

HEDS-9930E2LEVB
Evaluation Board, AEDR-9930E2L, Incremental Linear Encoder, 2 Units of Code Strip Bundling
register your interest here
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $171.880 ($197.662) |
| 5+ | $168.360 ($193.614) |
| 10+ | $164.820 ($189.543) |
| 50+ | $161.280 ($185.472) |
Product Information
Product Overview
HEDS-9930E2LEVB is a linear encoder evaluation board with 2 units of code strip bundling. The Broadcom® AEDR-9930E2L is a three-channel reflective optical encoder. It provides digital signals by employing reflective technology for motion control purposes. The AEDR-9930E2L digital encoder offers two-channel (AB) quadrature digital outputs and a third channel digital index output. A selectable interpolation option is available for the three-channel digital differential A, B, and gated I outputs. Being TTL compatible, the outputs of the encoder can be interfaced with most of the signal processing circuitry. Therefore, the encoder provides easy integration and flexible design-in into existing systems. Applications include closed-loop stepper motors, small motors, actuators, industrial printers, robotics, card readers, pan-tilt-zoom (PTZ) cameras, portable medical equipment, optometric equipment and linear stages.
Contents
Linear encoder evaluation board, 2 units of code strip.
Technical Specifications
Evaluation Board
Incremental Linear Encoder
No SVHC (21-Jan-2025)
AEDR-9930E2L
Evaluation Board AEDR-9930E2L, 2 Units of Code Strip Bundling
