1546306-4
Panel Mount Barrier Terminal Block, 2 Row, 4 Ways, 22 AWG, 12 AWG, 9.5 mm, 20 A

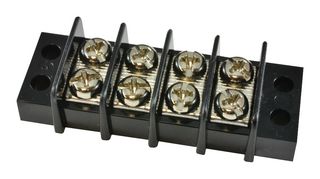

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - BUCHANAN
Manufacturer Part No1546306-4Copy
Manufacturer Standard Lead Time36 weeks
Order Code3133858
Product RangeBUCHANAN 4 Series
Your Part Number
2,639 total stock globally
Need more?
2,639 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $7.490 ($8.6135) |
| 10+ | $5.330 ($6.1295) |
| 100+ | $4.230 ($4.8645) |
| 250+ | $3.600 ($4.140) |
| 500+ | $3.380 ($3.887) |
| 1000+ | $3.230 ($3.7145) |
Price for:Each
Minimum: 1
Multiple: 1
$7.49 ($8.61 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - BUCHANAN
Manufacturer Part No1546306-4Copy
Manufacturer Standard Lead Time36 weeks
Order Code3133858
Product RangeBUCHANAN 4 Series
Technical Datasheet
No. of Rows2 Row
No. of Positions4Ways
Wire Size AWG Min22AWG
Wire Size AWG Max12AWG
Pitch Spacing9.5mm
Rated Current20A
Rated Voltage300V
Product RangeBUCHANAN 4 Series
SVHCNo SVHC (04-Feb-2026)
Technical Specifications
No. of Rows
2 Row
Wire Size AWG Min
22AWG
Pitch Spacing
9.5mm
Rated Voltage
300V
SVHC
No SVHC (04-Feb-2026)
No. of Positions
4Ways
Wire Size AWG Max
12AWG
Rated Current
20A
Product Range
BUCHANAN 4 Series
Technical Docs (3)
Alternatives for 1546306-4
3 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (04-Feb-2026)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.018144
