DPWC110000
Temperature and Humidity Sensor, Wall Mount, 10% to 90% RH, 3 %, Current, Voltage Output
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | CAREL |
|---|---|
| Manufacturer Part No | DPWC110000Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2068621 |
| Your Part Number | |
| Technical Datasheet |
1 total stock globally
Need more?
1 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $502.530 ($577.9095) |
Price for:Each
Minimum: 1
Multiple: 1
$502.53 ($577.91 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | CAREL |
|---|---|
| Manufacturer Part No | DPWC110000Copy |
| Manufacturer Standard Lead Time | 8 weeks |
| Order Code | 2068621 |
| Technical Datasheet | |
| Humidity Range | 10% to 90% Relative Humidity |
| Supply Voltage Min | - |
| Supply Voltage Max | - |
| Sensor Terminals | 0 |
| Sensing Accuracy | 3% |
| Response Time | 60s |
| Sensor Mounting | Wall Mount |
| Operating Temperature Min | -10°C |
| Operating Temperature Max | 60°C |
| Product Range | - |
| Qualification | - |
| SVHC | No SVHC (27-Jun-2024) |
Product Overview

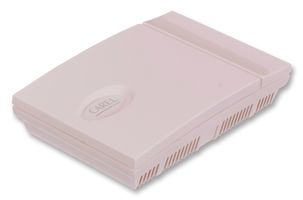

The DPWC110000 from Carel is a wall mounting temperature and humidity sensor for commercial applications. This high accuracy sensors are powered from a 8VDC to 30VDC or 12VAC to 24VAC.
- Temperature measuring range from -10°C to 60°C
- Humidity measuring range from 10RH to 90%RH
- Selectable 0V to 1VDC or 4mA to 20mA output
- Wall mounting sensor with IP30 rated enclosure
- CE certified
- Power Supply Voltage range from 8VDC to 30VDC or 12VAC to 24VAC
Applications
Sensing & Instrumentation, Consumer Electronics
Technical Specifications
| Humidity Range | 10% to 90% Relative Humidity |
|---|---|
| Supply Voltage Max | - |
| Sensing Accuracy | 3% |
| Sensor Mounting | Wall Mount |
| Operating Temperature Max | 60°C |
| Qualification | - |
| Supply Voltage Min | - |
|---|---|
| Sensor Terminals | 0 |
| Response Time | 60s |
| Operating Temperature Min | -10°C |
| Product Range | - |
| SVHC | No SVHC (27-Jun-2024) |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Italy Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 84159000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (27-Jun-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .21 |
