HBA82MFZRE
Through Hole Resistor, 82 Mohm, HB Series, 400 mW, ± 1%, Radial Leaded, 1 kV

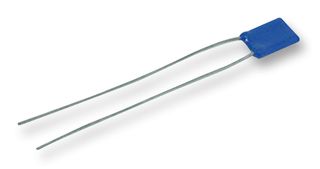

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoHBA82MFZRECopy
Manufacturer Standard Lead Time22 weeks
Order Code2991995
Product RangeHB Series
Also Known As1-1625960-2
Your Part Number
371 total stock globally
Need more?
371 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $14.570 ($16.7555) |
| 50+ | $12.750 ($14.6625) |
| 100+ | $10.550 ($12.1325) |
| 250+ | $9.480 ($10.902) |
| 500+ | $8.750 ($10.0625) |
| 1000+ | $8.160 ($9.384) |
Price for:Each
Minimum: 1
Multiple: 1
$14.57 ($16.76 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY - CGS
Manufacturer Part NoHBA82MFZRECopy
Manufacturer Standard Lead Time22 weeks
Order Code2991995
Product RangeHB Series
Also Known As1-1625960-2
Technical Datasheet
Resistance82Mohm
Product RangeHB Series
Power Rating400mW
Resistance Tolerance± 1%
Resistor Case / PackageRadial Leaded
Voltage Rating1kV
Resistor TechnologyThick Film
Temperature Coefficient± 100ppm/°C
Resistor TypeHigh Voltage
Product Diameter2.6mm
Product Length8mm
Product Width-
Operating Temperature Min-55°C
Operating Temperature Max125°C
Qualification-
SVHCLead (25-Jun-2025)
Technical Specifications
Resistance
82Mohm
Power Rating
400mW
Resistor Case / Package
Radial Leaded
Resistor Technology
Thick Film
Resistor Type
High Voltage
Product Length
8mm
Operating Temperature Min
-55°C
Qualification
-
Product Range
HB Series
Resistance Tolerance
± 1%
Voltage Rating
1kV
Temperature Coefficient
± 100ppm/°C
Product Diameter
2.6mm
Product Width
-
Operating Temperature Max
125°C
SVHC
Lead (25-Jun-2025)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Great Britain
Country in which last significant manufacturing process was carried out
Tariff No:85332100
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Y-Ex
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:Lead (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000579
