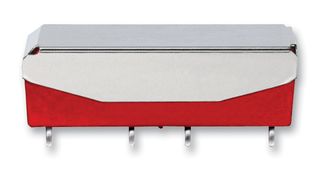

9104-05-11
Reed Relay, SPST-NO, 5 VDC, 9104 Series, Through Hole, 175 ohm, 500 mA
Need more?
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $21.200 ($24.380) |
| 5+ | $20.340 ($23.391) |
| 10+ | $19.450 ($22.3675) |
| 25+ | $18.590 ($21.3785) |
| 50+ | $18.010 ($20.7115) |
| 100+ | $17.690 ($20.3435) |
| 250+ | $17.130 ($19.6995) |
Product Information
Product Overview
The 9104-05-11 is a high voltage SIP Reed Relay with external magnetic shield and diode. This 9104-series moulded SIP relays are the industry standard when high reliability and consistent performance are desired in a compact package. These high voltage, high performance relays are ideally suited for automatic test equipment, instrumentation and process control applications where voltage isolation is a key design requirement. High reliability, hermetically sealed contacts for long life. high speed switching compared to electromechanical relays. Moulded thermoset body on integral lead frame design.
- High voltage switching up to 1000V
- 2000VDC High dielectric strength
- High insulation resistance
- Magnetic shield
Applications
Automation & Process Control, Sensing & Instrumentation
Technical Specifications
SPST-NO
9104 Series
175ohm
1kV
5VDC
Through Hole
500mA
No SVHC (21-Jan-2025)
Technical Docs (1)
Legislation and Environmental
Country in which last significant manufacturing process was carried outCountry of Origin:Mexico
Country in which last significant manufacturing process was carried out
RoHS
RoHS
Product Compliance Certificate
