CYBLE-022001-EVAL

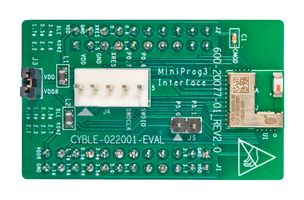

The CYBLE-022001-EVAL is an EZ-BLE PRoC evaluation board. This board enables to evaluate and develop applications on the EZ-BLE PRoC module. The CYBLE-022001-EVAL board can be used with the Bluetooth Low Energy Pioneer Kit (CY8CKIT-042-BLE) and PSoC Creator to develop BLE applications. To enable easy prototyping, the evaluation board routes GPIOs of on-board EZ-BLE PRoC module to the CapSense slider, RGB LED, switches, PSoC 5 LP and FRAM on BLE pioneer baseboard. This board can also be programmed and debugged with PSoC MiniProg3 Program and Debug Kit (CY8CKIT-002) and PSoC Creator. It works with almost any PRoC BLE example project that is available with the Bluetooth Low Energy Pioneer Kit (CY8CKIT-042-BLE). Simply changing pin mapping for example project to match pin mapping for the CYBLE-022001-EVAL.

Applications

Wireless, Embedded Design & Development

Contents

1 X EZ-BLE PRoC evaluation board (CYBLE-022001-EVAL) with on-board EZ-BLE PRoC module (CYBLE-022001-00).
