515-1105F

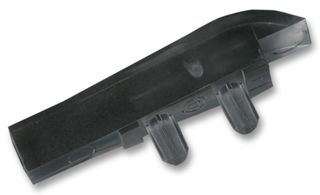

Light Pipe, 17.78 mm, 1 Pipes, Rectangular, Surface, Transparent
Image is for illustrative purposes only. Please refer to product description.
ManufacturerDIALIGHT
Manufacturer Part No515-1105F
Order Code1138256
Your Part Number
Technical Datasheet
3,956 total stock globally
Need more?
3956 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $2.510 ($2.8865) |
| 10+ | $1.940 ($2.231) |
| 25+ | $1.760 ($2.024) |
| 50+ | $1.590 ($1.8285) |
| 100+ | $1.400 ($1.610) |
| 500+ | $1.260 ($1.449) |
Price for:Each
Minimum: 1
Multiple: 1
$2.51 ($2.89 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerDIALIGHT
Manufacturer Part No515-1105F
Order Code1138256
Technical Datasheet
Length17.78mm
No. of Light Pipes1Pipes
Light Pipe ShapeRectangular
Mounting Orientation90°
Light Pipe MountingSurface
Light Pipe ColourTransparent
Product Range-
SVHCNo SVHC (25-Jun-2025)
Product Overview
The 515-1105F is a single-element Light Pipe moulded in a clear transmissive polycarbonate. It is designed to be pressed into a 0.093-inch thick PC board.
Applications
Industrial, Lighting
Technical Specifications
Length
17.78mm
Light Pipe Shape
Rectangular
Light Pipe Mounting
Surface
Product Range
-
No. of Light Pipes
1Pipes
Mounting Orientation
90°
Light Pipe Colour
Transparent
SVHC
No SVHC (25-Jun-2025)
Technical Docs (3)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:United States
Country in which last significant manufacturing process was carried out
Tariff No:90019000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (25-Jun-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00018
