471-036

Development Board, Eclypse Z7, XC7Z020-1CLG484C/ADC1410/DAC1411, ARM/FPGA, One Zmod ADC/Zmod DAC

New

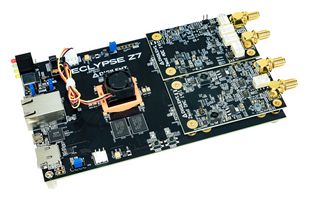

471-036 - Development Board, Eclypse Z7, XC7Z020-1CLG484C/ADC1410/DAC1411, ARM/FPGA, One Zmod ADC/Zmod DAC

Image is for illustrative purposes only. Please refer to product description.

Manufacturer:
DIGILENT DIGILENT
Manufacturer Part No:
471-036
Order Code:
3499669
Technical Datasheet:
471-036   Datasheet
See all Technical Docs

Product Information

Want to see similar products? Simply select your required attributes below and hit the button ×


:
Xilinx

:
32bit

:
Zynq-7000

:
ARM, FPGA

:
Cortex-A9

:
XC7Z020-1CLG484C, ADC1410, DAC1411

:
Eclypse Z7 Dev Board, FPGA Fan, USB Cables, 12V/5A Power Supply, Adding one Zmod ADC & one Zmod DAC

:
-

Find similar products Choose and modify the attributes above to find similar products.

Technical Docs (1)

Product Overview

Eclypse Z7 is Digilent's newest FPGA/SoC development board, specifically designed to enable the rapid prototyping and development of embedded measurement systems. Featuring high speed Zmod ports for modular expansion, a Xilinx Zynq®-7020 SoC plus software API from Digilent, the Eclypse Z7 is fast, flexible and shortens the time it takes for engineers and researchers to develop innovative and powerful new high-speed instrumentation, control and measurement systems for edge computing, medical and communications applications. Eclypse Z7 is the first host board of the Eclypse platform.
  • Eclypse Z7 Zynq-7000 SoC development board bundled with a Zmod DAC and Zmod ADC
  • SYZYGY compatible expansion
  • Zynq-7000 APSoC (XC7Z020-1CLG484C) 667MHz dual core Cortex-A9 processor
  • 1GiB DDR3L with 32bit bus at 1066MT/s, 16MB quad-SPI flash, microSD card slot
  • Powered from external 12V, 5A supply
  • Platform MCU for configuration of adjustable power supplies and temperature management
  • Gigabit Ethernet PHY, USB-JTAG programming circuitry USB-UART bridge
  • USB micro AB port with USB 2.0 PHY with Host/Device/OTG capabilities
  • Zmod ports, Pmod ports
  • 2 push-buttons, 2 RGB LEDs

Contents

Eclypse Z7 development board, FPGA fan, USB A to micro B programming cable, USB A to micro A cable, 12V/5A power supply, Digilent custom packaging, One Zmod ADC, One Zmod DAC.

Best Seller

Available for back order

More stock available to supplier lead times which is approximately 23/11/20

Notify me when back in stock

$948.05 ( $1,090.26  Inc. GST)

Pricing is unavailable. Please contact customer services.

Price for:
Each
Multiple: 1 Minimum: 1
Quantity Price (Incl GST) Your Price


1+ $948.05 ($1,090.26)
