Product Information
ManufacturerEAO
Manufacturer Part No51-235.025D2
Order Code2787257
Product Range51
Technical Datasheet
Switch OperationOn-Off
Contact ConfigurationSPST
Product Range51
No. of Switch Positions2 Position
Switch TerminalsSolder
Contact Current Max5A
Contact Voltage AC Nom250V
Contact Voltage DC Nom-
Angle of Throw90°
SVHCNo SVHC (17-Jan-2023)
Product Overview

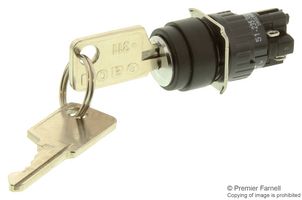

The 51-235.025D2 is a single-pole single-throw 2-position Keylock Switch with snap-action switching element, 1NC+1NO contact type. Solder terminal, On-Off operation, basic position A to C switching action, 90° switching angle, 9 wiring and raised design. The low level switching element is laid out for low current applications.
- Front plastic black
- DOM 311 Standard lock
Applications
Industrial
Technical Specifications
Switch Operation
On-Off
Product Range
51
Switch Terminals
Solder
Contact Voltage AC Nom
250V
Angle of Throw
90°
Contact Configuration
SPST
No. of Switch Positions
2 Position
Contact Current Max
5A
Contact Voltage DC Nom
-
SVHC
No SVHC (17-Jan-2023)
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Switzerland
Country in which last significant manufacturing process was carried out
Tariff No:85365080
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (17-Jan-2023)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.026989
