Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | EATON MOELLER |
|---|---|
| Manufacturer Part No | P1-32/V/SVBCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3211964 |
| Product Range | P1 Series |
| Your Part Number | |
| Technical Datasheet |
12 total stock globally
Need more?
12 Delivery in 3-5 Business Days(UK stock)
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $284.880 ($327.612) |
| 5+ | $279.190 ($321.0685) |
| 10+ | $273.490 ($314.5135) |
Price for:Each
Minimum: 1
Multiple: 1
$284.88 ($327.61 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EATON MOELLER |
|---|---|
| Manufacturer Part No | P1-32/V/SVBCopy |
| Manufacturer Standard Lead Time | 21 weeks |
| Order Code | 3211964 |
| Product Range | P1 Series |
| Technical Datasheet | |
| No. of Poles | 3 Pole |
| Contact Voltage AC Max | 690V |
| Contact Current AC Max | 32A |
| IP / NEMA Rating | IP65 |
| Switch Disconnector Terminal Style | Screw |
| Switch Disconnector Mounting Type | Rear Mount |
| Approvals / Standards | CSA, EN, IEC, UL |
| Product Range | P1 Series |
Product Overview

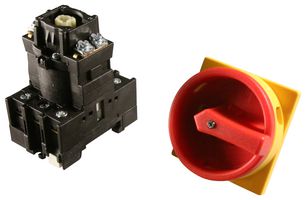

The P1-32/V/SVB from Eaton Moeller is a rear mounting 3 pole main switch for emergency-stop function.
- Rated voltage is 690VAC and continuous output current of 32A
- Red rotary handle and yellow locking ring
- Lockable in the 0 (off) position
- CSA, EN, IEC, UL certified
- Degree of protection rated to IP65 on front side
Applications
Automation & Process Control, Power Management, Industrial
Technical Specifications
| No. of Poles | 3 Pole |
|---|---|
| Contact Current AC Max | 32A |
| Switch Disconnector Terminal Style | Screw |
| Approvals / Standards | CSA, EN, IEC, UL |
| Contact Voltage AC Max | 690V |
|---|---|
| IP / NEMA Rating | IP65 |
| Switch Disconnector Mounting Type | Rear Mount |
| Product Range | P1 Series |
Technical Docs (1)
Alternatives for P1-32/V/SVB
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Great Britain Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85365080 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Not applicable |
| RoHS Phthalates Compliant: | Not applicable |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .22 |
