Print Page

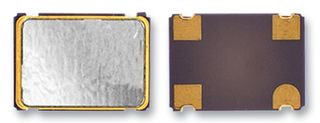

Image is for illustrative purposes only. Please refer to product description.

| Manufacturer | EUROQUARTZ |
|---|---|
| Manufacturer Part No | 3EQHM57-ET-100.000R-C1.5Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | Re-Reel1641083RL Cut Tape1641083 |
| Product Range | 3EQHM57 |
| Your Part Number | |
| Technical Datasheet |
18 total stock globally
Need more?
18 Delivery in 3-5 Business Days(UK stock)
Packaging Options
| Packaging Type | Quantity | Unit Price: | Total |
|---|---|---|---|
| Cut Tape | 1 | $15.750 | $15.75 |
Cut Tape & Re-Reel
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $15.750 ($18.1125) |
| 5+ | $12.290 ($14.1335) |
| 10+ | $11.170 ($12.8455) |
| 50+ | $10.340 ($11.891) |
| 100+ | $9.930 ($11.4195) |
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EUROQUARTZ |
|---|---|
| Manufacturer Part No | 3EQHM57-ET-100.000R-C1.5Copy |
| Manufacturer Standard Lead Time | 20 weeks |
| Order Code | Re-Reel1641083RL Cut Tape1641083 |
| Product Range | 3EQHM57 |
| Technical Datasheet | |
| Frequency Nom | 100MHz |
| Oscillator Output Compatibility | CMOS |
| Frequency Stability + / - | 50ppm |
| Oscillator Case / Package | SMD, 7mm x 5mm |
| Supply Voltage Nom | 3.3V |
| Product Range | 3EQHM57 |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Spread Spectrum Mode | Centre Spread ±1.5% |
| SVHC | No SVHC (23-Jan-2024) |
Technical Specifications
| Frequency Nom | 100MHz |
|---|---|
| Frequency Stability + / - | 50ppm |
| Supply Voltage Nom | 3.3V |
| Operating Temperature Min | -40°C |
| Spread Spectrum Mode | Centre Spread ±1.5% |
| Oscillator Output Compatibility | CMOS |
|---|---|
| Oscillator Case / Package | SMD, 7mm x 5mm |
| Product Range | 3EQHM57 |
| Operating Temperature Max | 85°C |
| SVHC | No SVHC (23-Jan-2024) |
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85416000 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | No SVHC (23-Jan-2024) |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .0035 |
