MC2004E-SYL
Alphanumeric LCD, 20 x 4, Black on Yellow / Green, 5V, Parallel, English, Japanese, Transflective

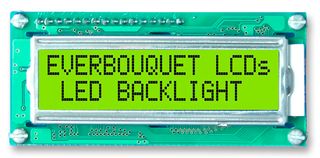

Image is for illustrative purposes only. Please refer to product description.
No Longer Manufactured
Product Information
ManufacturerEVERBOUQUET
Manufacturer Part NoMC2004E-SYL
Order Code1220439
Technical Datasheet
Character Count x Line20 x 4
Display AppearanceBlack on Yellow / Green
Logic Voltage5V
Interface TypeParallel
Font SetEnglish, Japanese
Display ModeTransflective
LCD Display TypeSTN
Module Size98mm x 60mm
Display ConstructionCOB
Backlighting ColourYellow / Green
Product Range-
Alternatives for MC2004E-SYL
1 Product Found
Product Overview
The MC2004E-SYL from Everbouquet is a alphanumeric LCD display module.
- Maximum logic supply voltage is 6V
- Display format is 20 character x 4 lines
- Character size of 2.95mm x 4.15mm (W x H)
- Transflective display
- Viewing area of 76mm x 25.2mm ( W x H)
- Operating temperature range from 0°C to 50°C
Applications
Imaging, Video & Vision
Technical Specifications
Character Count x Line
20 x 4
Logic Voltage
5V
Font Set
English, Japanese
LCD Display Type
STN
Display Construction
COB
Product Range
-
Display Appearance
Black on Yellow / Green
Interface Type
Parallel
Display Mode
Transflective
Module Size
98mm x 60mm
Backlighting Colour
Yellow / Green
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.073
