380947

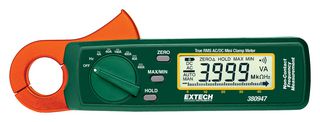

Clamp Meter, AC/DC Current, Frequency, 400 A, True RMS
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | 380947Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836692 |
| Also Known As | GTIN UPC EAN: 793950389478 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $761.880 ($876.162) |
Price for:Each
Minimum: 1
Multiple: 1
$761.88 ($876.16 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | 380947Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836692 |
| Also Known As | GTIN UPC EAN: 793950389478 |
| Technical Datasheet | |
| DMM Functions | AC/DC Current, Frequency |
| Current Measure AC Max | 400A |
| Voltage Measure AC Max | - |
| Voltage Measure DC Max | - |
| Resistance Measure Max | - |
| DMM Response Type | True RMS |
| Range Selection | Auto, Manual |
| No. of Digits | 3.75 |
| Jaw Opening Max | 23mm |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview
Mini DC/AC Clamp Meters ideal for low current measurements, with their high resolution, the ideal tool for accurately measuring very low AC & DC currents. Smaller in size than traditional clamp meters, they easily fit into tight spaces.
- Large 4000 count LCD display with full function indication
- True RMS measurements with 1mA AC resolution
- Non-contact Frequency measurements to 10kHz through the clamp jaws
- Fast 40 segment bargraph
- One touch Auto Zero
- Min/Max, Data hold and Auto power off
- 0.9" (23mm) jaw opening
Applications
Industrial, Maintenance & Repair, Test & Measurement
Technical Specifications
| DMM Functions | AC/DC Current, Frequency |
|---|---|
| Voltage Measure AC Max | - |
| Resistance Measure Max | - |
| Range Selection | Auto, Manual |
| Jaw Opening Max | 23mm |
| SVHC | To Be Advised |
| Current Measure AC Max | 400A |
|---|---|
| Voltage Measure DC Max | - |
| DMM Response Type | True RMS |
| No. of Digits | 3.75 |
| Product Range | - |
Technical Docs (1)
Associated Products
5 Products Found
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | Taiwan Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90303100 |
| US ECCN: | 3A992.a |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .4 |
