382275
Bench Power Supply, Adjustable, 1 Output, 1 V, 30 V, 1 A, 20 A

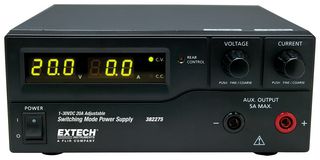

Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | 382275Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836696 |
| Also Known As | GTIN UPC EAN: 793950322758 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $999.670 ($1,149.6205) |
Price for:Each
Minimum: 1
Multiple: 1
$999.67 ($1,149.62 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | 382275Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836696 |
| Also Known As | GTIN UPC EAN: 793950322758 |
| Technical Datasheet | |
| Output Voltage Min | 1V |
| Output Voltage Max | 30V |
| Output Current Min | 1A |
| Output Current Max | 20A |
| Power Rating | 600W |
| Supply Voltage Min | - |
| Supply Voltage Max | 120VAC |
Product Overview
The 382275 is a laboratory grade switching mode DC Power Supply with dual 3-digit LED displays. The dual action (coarse/fine tune) rotary encoder allows for quick and precise voltage and current level adjustments. Setting, changing and checking the current limit level can be performed easily without sparking the output poles. The three user-presets facilitate quick access to frequently used voltage and current settings.
- Remote control for output voltage/current and On/Off
- Two user-defined voltage and current presets and one 13.8V/20A factory preset
- Automatic constant current crossover
- High RFI immunity and excellent EMI
- Thermostatic control fan from zero to full speed
- Overload, over-temperature and short-circuit protection
Applications
Test & Measurement, Power Management
Technical Specifications
| Output Voltage Min | 1V |
|---|---|
| Output Current Min | 1A |
| Power Rating | 600W |
| Supply Voltage Max | 120VAC |
| Output Voltage Max | 30V |
|---|---|
| Output Current Max | 20A |
| Supply Voltage Min | - |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 85044095 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | 2.875 |
