TH30
Data Logger, USB Temperature, 1 Channel, Temperature, USB, LCD
Image is for illustrative purposes only. Please refer to product description.
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | TH30Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836723 |
| Also Known As | GTIN UPC EAN: 0793950110300 |
| Your Part Number | |
| Technical Datasheet |
Available to Order
Manufacturer Standard Lead Time: 6 week(s)
Notify me when back in stock
| Quantity | Price (Incl GST) |
|---|---|
| 1+ | $201.760 ($232.024) |
| 5+ | $197.740 ($227.401) |
| 10+ | $193.700 ($222.755) |
Price for:Each
Minimum: 1
Multiple: 1
$201.76 ($232.02 inc GST)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
| Manufacturer | EXTECH INSTRUMENTS |
|---|---|
| Manufacturer Part No | TH30Copy |
| Manufacturer Standard Lead Time | 6 weeks |
| Order Code | 2836723 |
| Also Known As | GTIN UPC EAN: 0793950110300 |
| Technical Datasheet | |
| Data Logger Type | USB Temperature |
| No. of Channels / Inputs | 1 Channel |
| Sensor / Measurement Type | Temperature |
| Maximum Samples | - |
| Data Interface | USB |
| Display Type | LCD |
| Product Range | - |
| SVHC | To Be Advised |
Product Overview

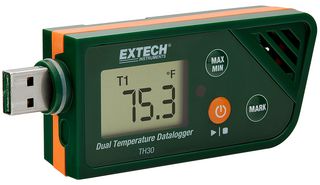

Easy-to-use datalogger records T1 (Air Temperature) and T2 (External Probe Temperature - includes TP830 probe) with date/ time stamp. The datalogger is designed with a rugged housing and a standard USB connector where stored readings (up to 48,000 data) are conveniently transferred to a PC in PDF or Excel® spreadsheet format when plugged in.
- Compact size housing with built-in NTC thermistor and external temperature probe designed with standard USB connector for easy data downloading to a PC
- 5-digit LCD display with battery life indicator
- User programmable settings: 6 languages, sample rate, start delay time, alarm delay time, high/low alarm range and security feature
- Status indication via red and green LEDs
- Start button begins continuous datalogging, until memory is full at 48,000 readings (24,000 for each parameter: T1 and T2), or when Stop button is pressed
- Bookmark 8 locations in a data recording log with a press of the Mark button
- Long battery life (approx. 3 months)
- Generates a PDF report or Excel® spreadsheet with data and trending graph when plugged into a PC after datalogging is completed (Adobe® Reader® required)
- Maximum / Minimum function
- Temperature: -30°C to 70°C
- Datalogging Interval: 30s to 2 Hours
- Relative Humidity: 24,000 points
- Temperature: 24,000 points
- Dimensions:110x40x19mm
- Weight: 90g
Contents
2x CR2032 batteries, USB cover (can be used as a stand), TP830 probe, and built-in hanger
Technical Specifications
| Data Logger Type | USB Temperature |
|---|---|
| Sensor / Measurement Type | Temperature |
| Data Interface | USB |
| Product Range | - |
| No. of Channels / Inputs | 1 Channel |
|---|---|
| Maximum Samples | - |
| Display Type | LCD |
| SVHC | To Be Advised |
Technical Docs (1)
Legislation and Environmental
| Country of Origin: Country in which last significant manufacturing process was carried outCountry of Origin: | China Country in which last significant manufacturing process was carried out |
|---|---|
| Tariff No: | 90251900 |
| US ECCN: | EAR99 |
| EU ECCN: | NLR |
| RoHS Compliant: | Yes RoHS |
| RoHS Phthalates Compliant: | Yes RoHS |
| SVHC: | To Be Advised |
| Download Product Compliance Certificate | Product Compliance Certificate |
| Weight (kg): | .137892 |
